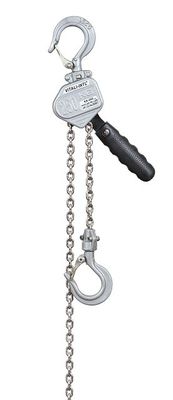

250 kg Lever Hoist KX
the smallest Lever Hoist of VITALI-INTL
Lever Hoist type KX is manufactured by VITALI-INTL Lifting Equipment Ltd, based on European and American standards. It's the smallest Lever Hoist of the company.
The whole series of Lever Hoist KX contains 250 kg, 500 kg, 750 kg and 1500 kg in load capacity. They are mainly exported to American and European markets.
Standard Features
1. Advanced gear reduction system (with 5 gears in the gear box, most of the other 250 kg lever hoist consists of 2 gears or without gear)
2. Double Pawl (higher safety standard, the other 250 kg lever hoist is single pawl)
3. 4 links load sprocket (more stable in lifting and longer life for the load chain, especially for the 250 kg hoist. The other 250 kg lever hoist has 3 links load sprocket.)
4. All the rotating parts are fitted with abrasion resistant bush
5. All the main parts and gears are made of alloy steel and heat treated (more durable and longer life)
6. Li & MoS2 grease (suitable to work in high & low temperature environment)
7. Operational test (each hoist is conducted an operational test at 150% of the rated capacity)
8. Endurance test (The hoist shall withstand 1,500 cycles with 110% of the rated capacity at least 300mm per cycle)
9. Aluminum alloy steel cover (light weight, 1.5 kg only for 250 kg lever hoist)
10. Alloy steel side plate with heat treated (higher durability, the other lever hoist are made of high carbon steel)
11. The shortest handle (140mm for 250 kg lever hoist)
12. Galv. load chain (Grade 80 or Grade 100)
13. More compact and durable (load sprocket and the load gear are combined as an integral part of the 250 kg lever hoist)
14. Heavy duty carry bag (for 250 kg lever hoist, option for 500 kg & 750 kg)
VITALI-INTL Lever Hoist KX Specification
| Capacity |
(kg) |
250 |
500 |
750 |
1500 |
| Product No. |
|
KX025 |
KX050 |
KX075 |
KX150 |
| No. of Falls |
|
1 |
1 |
1 |
1 |
| Load Chain |
(mm) |
3.2 x 9 |
4.3 x 12 |
5 x 15 |
7.1 x 19.9 |
| German Load Chain |
(mm) |
3 x 9 |
4 x 12 |
5 x 15 |
7.1 x 20.1 |
| Pull to Rated Load |
(N) |
178 |
324 |
373 |
410 |
| Proof Load |
(kg) |
375 |
750 |
1,125 |
2,250 |
| Standard Lift |
(m) |
1.0 |
1.5 |
1.5 |
1.5 |
| Net Weight |
(kg) |
1.53 |
2.5 |
3.4 |
6.27 |
| Gross Weight |
(kg) |
1.73 |
2.7 |
3.6 |
6.5 |
| Extra Wt. per m |
(kg) |
0.22 |
0.37 |
0.54 |
1.1 |
| Dimensions |
a |
(mm) |
87 |
100.5 |
105 |
122 |
| b |
(mm) |
76 |
81 |
92 |
109 |
| c |
(mm) |
200 |
250 |
260 |
330 |
| d |
(mm) |
145 |
160 |
180 |
220 |
| e |
(mm) |
55.5 |
62.5 |
64 |
68.5 |
| f |
(mm) |
35.5 |
42 |
42 |
52 |
| g |
(mm) |
21 |
24.5 |
28.5 |
35 |
| s |
(mm) |
32 |
34.5 |
35.5 |
42.5 |
| t |
(mm) |
11 |
12 |
14 |
21.5 |
About VITALI-INTL Lifting Equipment Ltd
VITALI-INTL Lifting Equipment Ltd, is one of the most advanced manual hoist factories in Asia. The company has registered the trademark with "VITALI-INTL" in Mainland China, Hong Kong China and some overseas countries.
The company's philosophy of management and quality control are based on European and American standards.Their high quality manual hoists are mainly exported to American and European markets.
The heat treatment and load chain production are the most critical production processes of the company. Additionally, they are equipped with advance scientific testing instruments, metallographic microscope, measuring projector, salt spray tester, endurance test machine and destruction test machine up to 100 tonnes.
