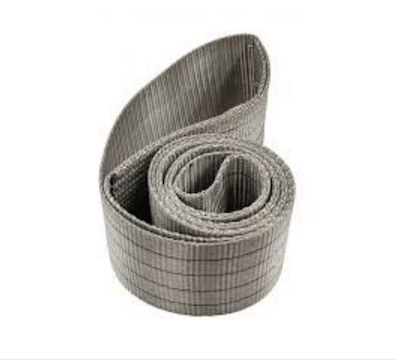

120mm 8 Tonne 1.5m Endless Flat Polyester Sling Belt

China Shanghai Anfeng Lifting & Rigging LTD. certification
China Shanghai Anfeng Lifting & Rigging LTD. certification
I'm Online Chat Now

120mm 8 Tonne 1.5m Endless Flat Polyester Sling Belt

120mm 8 Tonne 1.5m Endless Flat Polyester Sling Belt
120mm 8 Tonne 1.5m Endless Flat Polyester Sling Belt 120mm 8 Tonne 1.5m Endless Flat Polyester Sling Belt

Large Image :  120mm 8 Tonne 1.5m Endless Flat Polyester Sling Belt

Product Details:
Place of Origin: China
Brand Name: Anfeng / AF
Certification: CE, GS, ISO9001
Model Number: DES-8T
Payment & Shipping Terms:
Minimum Order Quantity: 500 pcs
Price: Call or Email for quote
Packaging Details: Carton + pallet, or wooden box
Delivery Time: Within 45 days after order confirmation
Payment Terms: T/T, L/C
Supply Ability: 10,000 pcs per month

120mm 8 Tonne 1.5m Endless Flat Polyester Sling Belt

Key Words: Double Layers Webbing Sling, Endless Lifting Sling, Flat Web Sling Safety Factor: 7:1
Material: 100% High Tenacity Polyester Color: Gray
Standard: EN 1492-1:2000, AS 1353.1-1997, JB/T 8521-2007 OEM, ODM Services: Yes, Upon Request
Packing: Carton + Pallet, Or Wooden Box Lifting Capacity: 8 Tonne
Sling Eye Type: Endless
High Light:

1.5m Polyester Sling Belt


120mm Polyester Sling Belt


Gray sling lifting belt

8 tonne Double Layers Polyester Webbing Sling
Endless Lifting Sling, Flat Webbing
Polyester webbing slings are slowly and progressively gaining the market share worldwide because of their unique features. They are a cheaper alternative to the traditional slings that have been used till date. Our polyester webbing slings can be manufactured and supplied in the standard web sling format: Endless, Single layer, Double layers, or to a custom design.
Duplex webbing slings are manufactured from high tenacity polyester webbing which is colour-coded for easy identification during lifting. Duplex slings are crafted from double layers of webbing that either terminates in a metal end-setting or generally sewn back upon themselves with an extreme tenacity polyester fabric to frame a reinforced “Eye” that has much better durability as compared to the traditional leather eye.

The duplex webbing slings are generally stitched near the eyes. However, the endless slings are made from single thick webbing, sewn in an uninterrupted loop with an overlap. These slings are popular type and are suitable for general and heavy lifting, as they are as strong as steel and are yet very light.
In order to guard the webbing from unnecessary wear and tear, several coverings are available, in any length, which protects both the sling and fragile loads.
Benefits of polyester webbing slings
1. Acid resistance — Polyester webbing sling is resistant to bleaching agents and acids. So it can be utilized in acidic environments.
2. Colour-coded — The web slings are colour coded to identify capacity limitations.
3. Firm grip — Polyester webbing slings allow for a firm hold / grip around objects being lifted.
4. Lightweight — The web sling's lightweight making the slings easier to be carried around sites, wrap and store.
5. Low cost — Polyester slings is available at a lower cost in comparison to wire rope slings and chain.
6. Non-explosive — Polyester slings can be safely used in explosive atmospheres (e.g. mining), the material is both non-sparking and non-conductive.
7. Quick drying — As a material, polyester is quick to dry because of its hydrophobic attributes.
8. Resistance and durability — Other than acid, polyester slings are resistant to many chemicals, oil, moisture, and grease. In addition to that, polyester is resistant to UV degradation.
9. Shape retention — Polyester slings are well known for retaining its shape. This is beneficial where there is restricted space. It also reduces the risk of shrinkage and stretching.
10. Softness — Polyester webbing sling is soft. It is not prone to scratch and it does not deform surfaces it comes in contact with. What's more, it is twist / kink resistant.
11. Strength — Polyester is very strong and is capable of lifting extremely heavy loads. They can also absorb shocks, which makes it an ideal material for slings.
12. Webbing Slings can be equiped with additional protective sleeve.
Anfeng Endless Double Layer Webbing Sling technical data sheet
code W.L.L Colour Approximate Width Min.length Max.length
6:1 7:1 8:1
  tons   mm mm mm m m
25 30 50
50 60 65
75 90 90
100 120 120
125 150 150
150 180 200
200 240 240
250 300 -
300 - -
Other sizes can be produced upon request
Inspection, testing and certification
All of our webbing slings are manufactured under strict quality control process. The products will be sampled and tested according to a certain ratio and provided with tensile test cetification before delivery.
Our technical staffs make sure the products meet all safety and manufacturing requirements. Upon request, Anfeng provides customers with DNV-GL, CCS, ABS and other third-party inspection certificates.
120mm 8 Tonne 1.5m Endless Flat Polyester Sling Belt 0
Company profile
Based in Shanghai Free Trade Zone, Shanghai Anfeng Lifting & Rigging Ltd. is an experienced technical and sales company specialized in supplying webbing slings, round slings, wire rope and slings, chains, rigging accessories and more.
Anfeng supplies steel wire ropes, wire rope slings, lifting chains and accessories, webbing slings, round slings, fall protection harness, typhoon resistant series products, lashing, offshore mooring lines, chain hoists, lever hoists, electric hoists, shackles up to 1500t, and lifting points.
With 20 years of experience in lifting and rigging industry, Anfeng not only provides customers with high-quality lifting and rigging products, but also provides complete lifting solutions according to different projects, such as technical consultation, solution design, product planning, onsite assistance and after-sales support.
