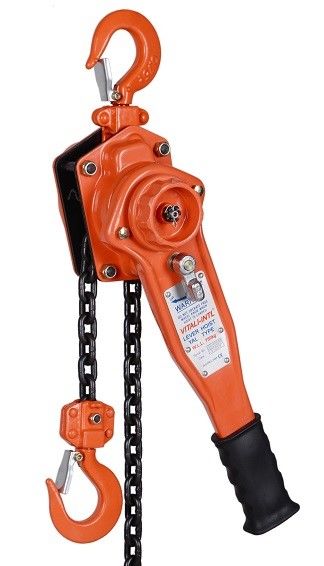

0.75 tonne Lever Hoist YAL
competitive Lever Hoist YAL with industrial performance
Lever Hoist type YAL is very light weight and competitive lever hoist with industrial performance. It meets all pertinent world standards. Every lever hoist is operationally tested to 150% of the rated capacity and is issued with an individual test certificate.
It is manufactured by VITALI-INTL Lifting Equipment Ltd. The whole series of Lever Hoist YAL contains 0.75 tonne, 1 tonne, 1.5 tonne, 3 tonne, 6 tonne and 9 tonne in load capacity. They are mainly exported to American and European markets.
Standard Features
1. Meets all pertinent world standards
2. All steel construction for external impact resistance
3. High-strength, cold-formed, stamped steel construction makes it lighter in weight yet impact resistant for longer life
4. 360○ degree handle rotation with short stroke to ratchet loads
5. Durable baked enamel paint protection
6. Reliable non-asbestos disc brake
7. Ribbed lever handle
8. Easy remove top hook
9. Minimal effort in a compact design
10. Chain guides provide smooth chain operation
11. Single-hand “free chaining” is simple and convenient, allowing smooth, trouble-free operation in the vertical or horizontal position
12. Hardened steel rollers supporting the load sheaves run smoother and last longer than bearings
13. Every lever hoist is operationally tested to 150% of the rated capacity and is issued with an individual test certificate
VITALI-INTL Lever Hoist YAL Specification
| Capacity |
(tonnes) |
0.75 |
1 |
1.5 |
3 |
6 |
9 |
| Product No. |
|
YAL075 |
YAL100 |
YAL150 |
YAL300 |
YAL600 |
YAL900 |
| No. of Falls |
|
1 |
1 |
1 |
1 |
2 |
3 |
| Load Chain |
(mm) |
6x18 |
6x18 |
8x24 |
10x30 |
10x30 |
10x30 |
| Pull to Rated Load |
(N) |
280 |
360 |
380 |
315 |
330 |
360 |
| Proof Load |
(tonnes) |
1.13 |
1.5 |
2.25 |
4.5 |
9 |
13.5 |
| Standard Lift |
(m) |
1.5 |
1.5 |
1.5 |
1.5 |
1.5 |
1.5 |
| Net Weight |
(kg) |
6.4 |
6.5 |
11.3 |
19.3 |
31.3 |
42 |
| Gross Weight |
(kg) |
6.8 |
6.9 |
12.3 |
20.4 |
32.4 |
51 |
| Extra Wt. per m |
(kg) |
0.8 |
0.8 |
1.4 |
2.2 |
4.4 |
6.6 |

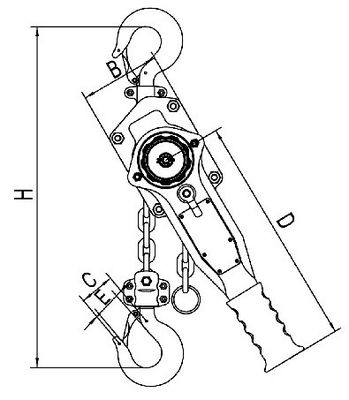

| Dimensions |
A |
(mm) |
148 |
148 |
172 |
200 |
200 |
200 |
| B |
(mm) |
96 |
96 |
110 |
144 |
144 |
144 |
| C |
(mm) |
37 |
45 |
47 |
62.5 |
78 |
- |
| D |
(mm) |
290 |
290 |
390 |
420 |
420 |
420 |
| E |
(mm) |
28 |
33 |
33.5 |
43.5 |
51 |
64 |
| H |
(mm) |
325 |
325 |
380 |
480 |
620 |
690 |
About VITALI-INTL Lifting Equipment Ltd
VITALI-INTL Lifting Equipment Ltd, is one of the most advanced manual hoist factories in Asia. The company has registered the trademark with "VITALI-INTL" in Mainland China, Hong Kong China and some overseas countries.
The company's philosophy of management and quality control are based on European and American standards.Their high quality manual hoists are mainly exported to American and European markets.
The heat treatment and load chain production are the most critical production processes of the company. Additionally, they are equipped with advance scientific testing instruments, metallographic microscope, measuring projector, salt spray tester, endurance test machine and destruction test machine up to 100 tonnes.
