Single Loop 22mm Lifting Chain Sling With Chain Accessories
Basic Properties
Place of Origin:
China
Brand Name:
Anfeng / AF
Certification:
CE, GS, ISO
Model Number:
/
Trading Properties
Minimum Order Quantity:
500 pcs
Price:
Call or Email for quote
Payment Terms:
T/T, L/C
Supply Ability:
10,000 pcs per month
Product Summary
22mm Endless Chain Sling Grade 80, single loop, with chain accessories, Chain Sling Assembly, for overhead lifting and industrial heavy lifting, high strength Single loop Endless Chain Sling (assembly) Product Overview Our Single loop Endless Chain Sling in Grade 80 has a single chain length to support the lifted load. The sling is flexible, temperature resistant, and strong enough to handle a wide array of loading conditions. It will benefit the lifting application when
Product Details
Highlight:
22mm Lifting Chain Sling
,EN818-2 Lifting Chain Sling
,Grade 80 adjustable lifting chains
Key Word:
Endless Chain Sling Grade 80, Single Loop, With Chain Accessories, Industrial Heavy Lift Chain Sling, For Overhead Lifting, Chain Sling Assembly
Material:
High Strength Alloy Steel
Strength Of The Chain:
Grade 80
Chain Accessory:
With Master Link And Clevis Self-Locking Hooks
Finish:
Chain Hot Dip Galvanized And Accessories Painted Yellow Or Customized
Standard:
ISO1835, ISO3077, EN818-2
Length:
Customized
Application:
Overhead Lifting Application, Industrial Lifting, Heavy Lift
Packaging:
Carton + Pallet, Wooden Box, Or Custom
OEM Or ODM Services:
Yes, Upon Request
Product Description
22mm Endless Chain Sling Grade 80, single loop, with chain accessories, Chain Sling Assembly, for overhead lifting and industrial heavy lifting, high strength

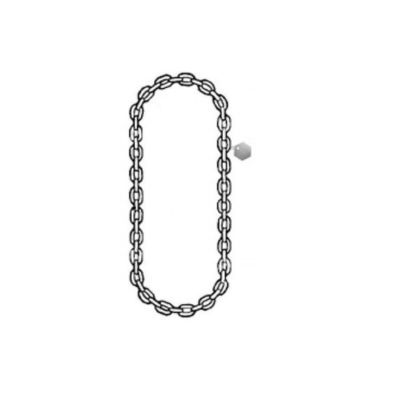

Single loop Endless Chain Sling (assembly)
Product Overview
Our Single loop Endless Chain Sling in Grade 80 has a single chain length to support the lifted load. The sling is flexible, temperature resistant, and strong enough to handle a wide array of loading conditions.
It will benefit the lifting application when using an Endless Chain Sling over a straight leg equivalent if you have different hitching requirements and need to make sure a potentially awkward load type is handled safely during lifting and lowering.
All of our Grade 80 chains and chain components are manufactured by heat treated alloy steel, and meet the requirements of ISO1835, ISO3077 and EN818-2 standards. These chains and components are designed to be high strength, rugged, versatile and low weight.

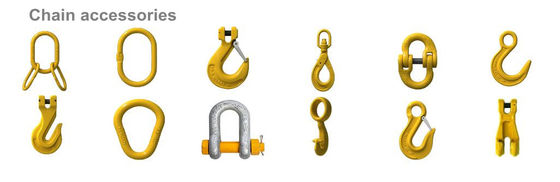

These lifting chains are available in models of up to four individual chains per sling. This will allow for more attachment points and therefore, higher levels of control. The chain slings generally consist of a large Master Link at top with a shortening Clevis Grab Hook for leg length adjustment joined with a Chain Connector, and a Clevis Self-Locking Hook fitted to the bottom of the chain leg for increased safety.
All our chain slings are proof tested to twice the WLL. Both the chains and components have distinctive markings for tracibility. They are recommended for overhead lifting and heavy lift applications.
Main features:
- Alloy steel
- Heat treated and hot dip galvanized
- Minimum proof test load is 2 times of the working load limit.
- Grade 80 chain accessories
Specification
| Single-leg | Endless loop | Double-leg | ||||||
| vertical lifting | choker hitch | vertical lifting | choker hitch | vertical lifting | choker hitch | |||
|
Dia.
(mm)
|
- | - | - | - | 0°- 45° | 45°- 60° | 0°- 45° | 45°- 60° |
| Load factor = 1.0 | Load factor = 0.8 | Load factor = 4.0 | Load factor = 1.4 | Load factor = 1.0 | Load factor = 1.0 | Load factor = 1.12 | Load factor = 0.8 | |
| 6 | 1 | 0.8 | 4 | 1.6 | 1.4 | 1 | 1.1 | 0.8 |
| 8 | 2 | 1.6 | 8 | 3.2 | 2.8 | 2 | 2 | 1.6 |
| 10 | 3.2 | 2.5 | 12.5 | 5 | 4.5 | 3.2 | 3.6 | 2.5 |
| 11 | 3.8 | 3 | 15.2 | 6 | 5.3 | 3.8 | 4.1 | 3 |
| 12 | 4.6 | 3.6 | 18.4 | 7.3 | 6.5 | 4.6 | 5.2 | 3.6 |
| 12.5 | 5 | 4 | 20 | 8 | 7 | 5 | 5.5 | 4 |
| 13 | 5.3 | 4.2 | 21.2 | 8.4 | 7.4 | 5.3 | 5.8 | 4.2 |
| 14 | 6.2 | 5 | 24.8 | 9.9 | 8.7 | 6.2 | 6.9 | 5 |
| 15 | 7 | 5.6 | 28 | 11.2 | 9.8 | 7 | 7.7 | 5.6 |
| 16 | 8 | 6.4 | 32 | 12.8 | 11.2 | 8.8 | 8.8 | 6.4 |
| 18 | 10 | 8 | 40 | 16 | 14 | 10 | 11 | 8 |
| 19 | 11.3 | 9 | 45.2 | 18 | 15.8 | 11.3 | 12.4 | 9 |
| 20 | 12.5 | 10 | 50 | 20 | 17.5 | 12.5 | 13.7 | 10 |
| 22 | 15 | 12 | 60 | 24 | 21.2 | 15 | 17 | 12 |
| 24 | 18 | 14.4 | 72 | 28.8 | 25.2 | 18 | 20.2 | 14.4 |
| 26 | 21.3 | 17 | 85.2 | 34.1 | 29.8 | 21.3 | 23.4 | 17 |
| 30 | 28.2 | 22.6 | 112.8 | 45.1 | 39.5 | 28.2 | 31.6 | 22.6 |
| 32 | 32.1 | 25.6 | 128.4 | 51.3 | 44.9 | 32.1 | 35.3 | 25.6 |
| 34 | 36.2 | 28.9 | 144.8 | 57.9 | 50.7 | 36.2 | 40.5 | 28.9 |
| 36 | 40 | 32 | 160 | 64 | 56 | 40 | 44 | 32 |
| 38 | 45.3 | 36.2 | 181.1 | 72.4 | 63.4 | 45.3 | 49.8 | 36.2 |
| 42 | 55.5 | 44.4 | 222 | 88.8 | 77.7 | 55.5 | 61 | 44.4 |
