Galvanized Steel 48mm 4 Way Wire Rope Slings, lift sling

Galvanized Steel 48mm 4 Way Wire Rope Slings, lift sling
Galvanized Steel 48mm 4 Way Wire Rope Slings, lift sling Galvanized Steel 48mm 4 Way Wire Rope Slings, lift sling

Large Image :  Galvanized Steel 48mm 4 Way Wire Rope Slings, lift sling

Product Details:
Place of Origin: China
Brand Name: Anfeng / AF
Certification: CE, ISO 9001
Model Number: CSFWS48
Payment & Shipping Terms:
Minimum Order Quantity: 10 0 pcs
Price: Call or Email for quote
Packaging Details: Carton + pallet, wooden box, or custom
Delivery Time: Within 45 days after order confirmation
Payment Terms: T/T, L/C
Supply Ability: 10,000 pcs per month
Contact Now

Galvanized Steel 48mm 4 Way Wire Rope Slings, lift sling

Description
Brand Name: Anfeng / AF Standard: EN 13411-3: 2003, EN 13411-3: 2004, GB/T 16762-2009, GB/T 14737-2009
Material: Galvanized Steel Wire Rope With Steel Core Strength: 1770 MPa
Length: Customized Wire Rope End Fittings: Flemish Eye Sleeve And Thimble
Key Word: Four-leg Wire Rope Sling, Wire Rope With Flemish Eye Sleeve And Thimble, Steel Core, Sling Assembly OEM Or ODM Services: Yes, Upon Request
Place Of Origin: Shanghai Or Guangzhou, China Packing: Carton + Pallet, Wooden Box, Or Custom
Equipped With: Standard Shackle Or Hook And Master Links
High Light:

steel 4 Way Wire Rope Slings

,

48mm 4 Way Wire Rope Slings

,

Galvanized Steel 4 leg sling


48mm Four-leg steel wire rope slings, steel core, swaged wire rope with Flemish Eye Sleeve and Thimble, equipped with Master Link

Four-leg wire rope sling assembly, steel core, Soft Eye and Eye Sling

Product Description

A Four-leg Wire Rope Sling Assembly contains four Soft Eye and Eye Slings, which are equipped with a thimble eye and pressed with a ferrule. Having thimbles at each end means a strong structural support. This lifting set can be used for a range of applications. For example, it could be used as a balustrade with each end looping over a shackle or a hook.

Each of the four-leg sling features 6 x 37 (a) construction, Extra Improved Plow Steel (EIPS) wire rope, with an Independent Wire Rope Core (IWRC), and has a tensile strength in 1770MPa. The lifting set is produced according to our DNV Quality Management Approved System and meet with EN 13411-3: 2003, EN 13411-3: 2004, GB/T 16762-2009 and GB/T 14737-2009 requirements.

All the lifting sets provided will have been safely, reliably and professionally carried out on site by our experienced team.

Specification

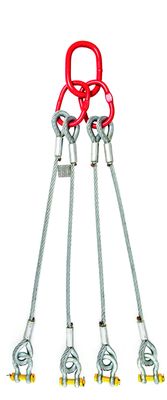

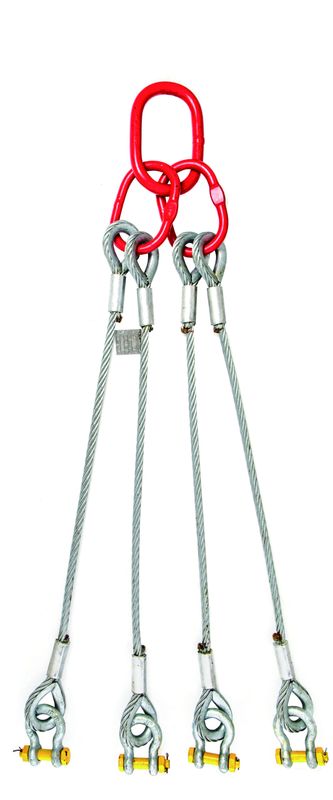

Galvanized Steel 48mm 4 Way Wire Rope Slings, lift sling 0Galvanized Steel 48mm 4 Way Wire Rope Slings, lift sling 1






Product Code




Rope dia.
(mm)

6x37 (a) + IWRC, 1770 MPa
WLL (t)

Master Link dimension
d1×A×B

(mm)

Equipped with
α ≤ 45°
45°＜ α ≤ 60°
Hook
Shackle
Load capacity
Gape
C
Load capacity
dimension
d2×E×F
(t)
(mm)
(t)
(mm)
CSFWH11 CSFWS11 11 2.9 2.1 16×140×80 2 26.9 1.5 13×19×42
CSFWH12 CSFWS12 12 3.5 2.5 16×140×80 2 26.9 2 16×21×47
CSFWH13 CSFWS13 13 4.1 2.9 20×160×95 2 26.9 2 16×21×47
CSFWH14 CSFWS14 14 4.8 3.4 20×160×95 3 30.2 3.25 19×27×60
CSFWH15 CSFWS15 15 5.5 3.9 20×160×95 3 30.2 3.25 19×27×60
CSFWH16 CSFWS16 16 6.2 4.4 26×190×110 3 30.2 3.25 19×27×60
CSFWH18 CSFWS18 18 7.9 5.6 26×190×110 4.5 38.1 4.75 22×32×71
CSFWH20 CSFWS20 20 9.7 6.9 32×230×130 7 45 4.75 22×32×71
CSFWH22 CSFWS22 22 11.8 8.4 32×230×130 7 45 6.5 25×37×84
CSFWH24 CSFWS24 24 14 10 32×230×130 7 45 8.5 28×43×95
CSFWH26 CSFWS26 26 16.4 11.7 38×275×150 11 61 8.5 28×43×95
CSFWH28 CSFWS28 28 19 13.6 38×275×150 11 61 9.5 32×46×108
CSFWH30 CSFWS30 30 21.9 15.6 38×275×150 11 61 12 35×52×119
CSFWH32 CSFWS32 32 24.9 17.8 45×340×180 15 66.6 12 35×52×119
CSFWH34 CSFWS34 34 28.1 20 45×340×180 15 66.6 13.5 38×57×131
CSFWH36 CSFWS36 36 31.5 22.5 45×340×180 15 66.6 17 42×61×148
CSFWH38 CSFWS38 38 35.1 25 50×350×190 22 86.6 17 42×61×148
CSFWH40 CSFWS40 40 38.8 27.7 50×350×190 22 86.6 25 51×73×177
CSFWH42 CSFWS42 42 42.8 30.6 56×400×200 22 86.6 25 51×73×177
CSFWH44 CSFWS44 44 47 33.6 56×400×200 30 101.6 25 51×73×177
CSFWS46 CSFWS46 46 51.4 36.7 56×400×200 30 101.6 25 51×73×177
CSFWH48 CSFWS48 48 55.9 40 56×400×200 30 101.6 35 57×83×197

 Note:
 1. Reference standard: EN 13411-3: 2003, EN 13411-3: 2004, GB/T 16762-2009, GB/T 14737-2009.
 2. Surface treatment of wire ropes can be galvanized and grease free, galvanized with grease and uncoated with grease.
 3. The wire rope structure, tensile strength and working load limited could be customized according to customer's request.
 4. Safety factor of the rigging is 5:1.
 5. Safety factor of the Master Link and Hook is 4:1.
 6. Safety factor of the shackle is 6:1.


Galvanized Steel 48mm 4 Way Wire Rope Slings, lift sling 2

About Anfeng Lifting & Rigging

Based in Shanghai Free Trade Zone, Shanghai Anfeng Lifting & Rigging Ltd. is an experienced technical and sales company specialized in supplying webbing slings, round slings, wire rope and slings, chains, rigging accessories and more.

Anfeng supplies steel wire ropes, wire rope slings, lifting chains and accessories, webbing slings, round slings, fall protection harness, typhoon resistant series products, lashing, offshore mooring lines, chain hoists, lever hoists, electric hoists, shackles up to 1500t, and lifting points.

We have earned a reputation globally as a provider of high quality products, supported by our trained staff and high standard of QA/QC procedure and inspections. Our technical staffs make sure the products meet all safety and manufacturing requirements. Upon request, Anfeng provides customers with DNV-GL, CCS, ABS and other third-party inspection certificates.

Galvanized Steel 48mm 4 Way Wire Rope Slings, lift sling 3
