100 tonne High Performance Endless Round Sling, Heavy Duty Lifting Sling
made by UHMWPE
Description

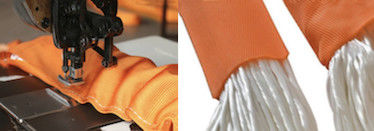

Our High Performance Round Slings are made by Ultra-high-molecular-weight polyethylene (UHMWPE). UHMWPE fiber is stronger than regular polyester fiber.
The High Performance Round Slings are generally comparable to steel wire rope and chain sling of same lifting capacity, due to the superior properties such as stronger, more durable, more compact, much light weight, softness, no damage to the object, safety and non-conductivity, corrosion resistance, and higher cost performance.
This means the High performance Round Slings will stay in service longer and cost less in the long run. Such lighter more compact sling also means less OH&S issues for workforce.
UHMWPE fiber allows for stronger round slings to be manufactured in smaller diameters and lighter weights. What's more, the soft slings can be moved and transferred easily in working places. It's a preferred choice when higher load capacity is required.
Specification
1. Lifting capacity (tons): 1, 2, 3, 4, 5, 6, 8,10,12,15, 20, 30, 50,100, 200, 250, 300, 500, 800, 1000, 2000
2. Material: UHMWPE
3. Sling Color: yellow, red, blue, orange, purple, brown, gray, green
4. Safety factor: 6:1, 7:1, 8:1
5. Length: custom
6. Standard: JB/T 8521-2007, EN 1492-2:2000, AS 4497.1-1997
7. Usage: machinery, material handling, ship building, power installation, transportation
| code |
W.L.L
tons |
Colour |
Diameter
mm |
Min.length
m |
Max.length
m |
RES-H-1T
RES-H-2T
RES-H-3T |
1
2
3 |
purple
green
yellow |
14
18
21 |
0.5
0.5
0.5 |
80
80
80 |
RES-H-4T
RES-H-5T
RES-H-6T |
4
5
6 |
gray
red
brown |
24
27
29 |
0.5
0.5
1.0 |
80
80
80 |
RES-H-8T
RES-H-10T
RES-H-12T |
8
10
12 |
blue
orange
orange |
32
36
39 |
1.0
2.0
2.0 |
80
80
80 |
RES-H-15T
RES-H-20T
RES-H-30T |
15
20
30 |
orange
orange
orange |
44
52
64 |
2.0
2.0
2.0 |
80
80
80 |
RES-H-50T
RES-H-100T
RES-H-200T |
50
100
200 |
orange
orange
orange |
84
120
140 |
2.0
2.0
2.0 |
80
80
80 |
RES-H-250T
RES-H-300T
RES-H-500T |
250
300
500 |
orange
orange
orange |
175
196
245 |
2.0
2.0
2.5 |
80
80
80 |
RES-H-800T
RES-H-1000T
RES-H-2000T |
800
1000
2000 |
orange
orange
orange |
298
332
470 |
2.5
3.0
3.0 |
80
80
80 |
| Other sizes can be produced upon request |
Advantages
1. Light weight, easy to use, low elongation.
2. Lifting smoothly and security.
3. Faster rigging
4. Easier storage for transport
5. Soft surface, no damage the loaded objects.
6. High strength / weigth ratio, vavious loading methods.
7. Longer lasting
8. Unique label &color make the slings easy to identity.
9. Non-conducting, no risk of electric shock.
10. High flexiblity and adaptability to make angles.
11. High corrosion resistance and wear abrasion resistance.
12. Anti-oxidation and anti-ultraviolet, not easy to ageing and embrittlement.
13. Working tempereature range is -40°C~100°C.
