ISO1835 Single Chain Sling

Send Me The Latest Product Alerts
(No SPAM - We would not sell or share your e-mail address.)

ISO1835 Single Chain Sling

ISO1835 Single Chain Sling
ISO1835 Single Chain Sling ISO1835 Single Chain Sling

Large Image :  ISO1835 Single Chain Sling

Product Details:
Place of Origin: China
Brand Name: Anfeng / AF
Certification: CE, GS, ISO
Model Number: /
Payment & Shipping Terms:
Minimum Order Quantity: 500 pcs
Price: Call or Email for quote
Packaging Details: Carton + pallet, wooden box, or custom
Delivery Time: Within 45 days after order confirmation
Payment Terms: T/T, L/C
Supply Ability: 10,000 pcs per month
  • Product Details
Detailed Product Description
Key Word: Single-leg Grade 80 Alloy Steel Chain Sling, With Safety Hook, Industrial Heavy Lift Chain Sling, For Overhead Lifting, Chain Sling Assembly Material: High Strength Alloy Steel
Strength Of The Chain: Grade 80 Chain Accessory: With Master Link, Shortening Clevis Grab Hook With Chain Connector, Clevis Self-Locking Hook
Finish: Chain Hot Dip Galvanized And Accessories Painted Yellow Or Customized Standard: ISO1835, ISO3077, EN818-2
Length: Customized Application: Overhead Lifting Application, Industrial Lifting, Heavy Lift
Packaging: Carton + Pallet, Wooden Box, Or Custom OEM Or ODM Services: Yes, Upon Request
High Light:

ISO1835 Single Chain Sling

,

10mm Single Chain Sling

,

G80 10mm lifting chain


10mm Single-leg Grade 80 Alloy Steel Chain Sling, with shortening hook and self-locking hook, Chain Sling Assembly, for overhead lifting and industrial heavy lifting, high strength

Single-leg Grade 80 Lifting Chain Sling (assembly)

Product Overview
Our Single-leg Chain Slings in Grade 80 are available from 6 to 32mm, with load factor of 1.

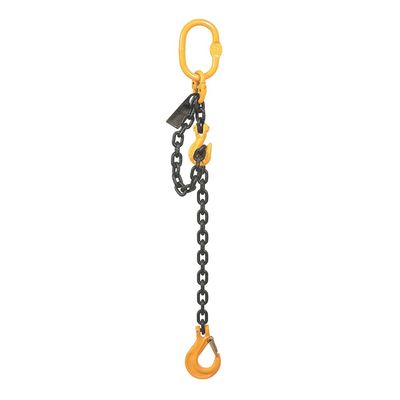

The single-leg chain slings generally consist of a large Master Link at top with a shortening Clevis Grab Hook for leg length adjustment joined with a Chain Connector, and a Clevis Self-Locking Hook fitted to the bottom of the chain leg for increased safety

All of our Grade 80 chains and chain components are manufactured by heat treated alloy steel, and meet the requirements of ISO1835, ISO3077 and EN818-2 standards. These chains and components are designed to be high strength, rugged, versatile and low weightThe lifting chains are available in models of up to four individual chains per sling. This will allow for more attachment points and therefore, higher levels of control.

Our chain slings are proof tested to twice the WLL. Both the chains and components have distinctive markings for tracibility. They are suited for all applications with standard crane hooks and for general lifting purposes.

Main features:
- Alloy steel
- Heat treated and hot dip galvanized
- Minimum proof test load is 2 times of the working load limit.
- Grade 80 chain accessories

Specification

  Single-leg (tons) Two-leg (tons) Three-leg (tons) Four-leg (tons) Endless

Extra weight per meter

(kg/m)

  0-45° >45-60° 0-45° >45-60° 0-45° >45-60°

Dia.

(mm)

Load factor = 1 Load factor = 1.4 Load factor = 1 Load factor = 2.1 Load factor = 1.5 Load factor = 2.1 Load factor = 1.5 Load factor = 1.6
φ 6mm 1.12 1.57 1.12 2.35 1.68 2.35 1.68 1.79 0.80
φ 8mm 2.00 2.80 2.00 4.20 3.00 4.20 3.00 3.20 1.40
φ 10mm 3.15 4.41 3.15 6.62 4.73 6.62 4.73 5.04 2.20
φ 13mm 5.30 7.42 5.30 11.13 7.95 11.13 7.95 8.48 3.80
φ 16mm 8.00 11.20 8.00 16.80 12.00 16.80 12.00 12.80 5.70
φ 18mm 10.00 14.00 10.00 21.00 15.00 21.00 15.00 16.00 7.30
φ 20mm 12.50 17.50 12.50 26.25 18.75 26.25 18.75 20.00 9.00
φ 22mm 15.00 21.00 15.00 31.50 22.50 31.50 22.50 24.00 10.90
φ 26mm 21.20 29.68 21.20 44.52 31.80 44.52 31.80 33.92 15.20
φ 32mm 31.50 44.10 31.50 66.15 47.25 66.15 47.25 50.40 23.00

About Anfeng Lifting & Rigging

Based in Shanghai Free Trade Zone, Shanghai Anfeng Lifting & Rigging Ltd. is an experienced technical and sales company specialized in supplying webbing slings, round slings, wire rope and slings, chains, rigging accessories and more.

Anfeng supplies steel wire ropes, wire rope slings, lifting chains and accessories, webbing slings, round slings, fall protection harness, typhoon resistant series products, lashing, offshore mooring lines, chain hoists, lever hoists, electric hoists, shackles up to 1500t, and lifting points.

We have earned a reputation globally as a provider of high quality products, supported by our trained staff and high standard of QA/QC procedure and inspections. Our technical staffs make sure the products meet all safety and manufacturing requirements. Upon request, Anfeng provides customers with DNV-GL, CCS, ABS and other third-party inspection certificates.
