Product Details:
|
| Safety Features: | Safety Bolt For Double Safety, Prevents Accidental Unscrewing Of The Pin | Location: | Based In Shanghai Free Trade Zone |
|---|---|---|---|
| Material: | High Quality Carbon Steel Shackle Bows And Alloy Steel Pins | Design: | Round 'O' Shaped Bow For Side Loading And Multiple Sling-leg Connections |
| Manufacturer: | Anfeng Lifting & Rigging Ltd. | Sizes Available: | From 1-1/4 Inch To 5 Inch Nominal Size |
| Load Capacity: | Proof Load Is 2 Times Of The Working Load Limit, Minimum Breaking Load Is 6 Times Of The Working Load Limit | Product Name: | Yellow Safety Bolt Type Shackle WLL 12 Tonne Anchor Bow Shackle |
| Highlight: | 12 Tonne Bolt Shackles,Heavy Duty Bolt Shackles,Rigging Solution Bolt Shackles |
||

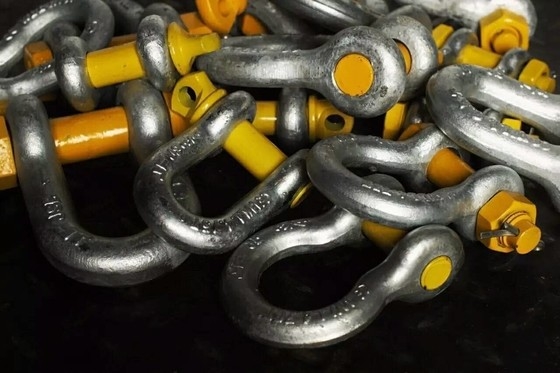

Anfeng's Yellow Safety Bolt Type Shackle (WLL 12 Tonne) is a high-performance rigging accessory designed for heavy-duty lifting, marine, construction, and industrial applications. Featuring a hot-dip galvanized finish and alloy steel construction, this shackle provides superior strength, corrosion resistance, and safety compliance with ASME B30.26-2004 & RR-C-271D standards.
✔ 12 Tonne Working Load Limit (WLL) – Supports extreme lifting capacities with a 6:1 safety factor (Min. Breaking Load = 72 Tonnes).
✔ Safety Bolt Design – Prevents accidental pin unscrewing, ensuring secure load handling.
✔ Galvanized Finish – Rust-resistant coating for long-term durability in harsh environments.
✔ Versatile Use – Compatible with wire rope slings, chains, webbing slings, and multi-leg rigging systems.
✔ Interchangeable Bow & Anchor Shackles – Flexible for side loading and multiple sling connections.
✔ Certified Quality – CE, ISO9001, DNV certified for guaranteed reliability.
| Parameter | Details |
|---|---|
| Model Number | JBB-12 |
| Type | Anchor/Bow Shackle |
| Material | High-Quality Carbon Steel Bow + Alloy Steel Pin |
| Finish | Hot-Dip Galvanized |
| Safety Features | Locking Safety Bolt |
| WLL (Working Load Limit) | 12 Tonnes |
| Proof Load | 24 Tonnes (2x WLL) |
| Min. Breaking Load | 72 Tonnes (6x WLL) |
| Standards | ASME B30.26-2004, RR-C-271D |
| Size Range | 1-1/4" to 5" Nominal |
| Weight Range | 0.22 kg – 318 kg |
| Certifications | CE, ISO9001, DNV |
✅ Heavy Machinery Lifting – Secures cranes, excavators, and industrial equipment.
✅ Marine & Offshore Rigging – Resistant to saltwater corrosion.
✅ Construction & Infrastructure – Supports scaffolding, beams, and cable systems.
✅ Transport & Logistics – Ensures safe cargo securing for trucks and ships.
✅ Mining & Oilfield Operations – Withstands high-stress environments.
