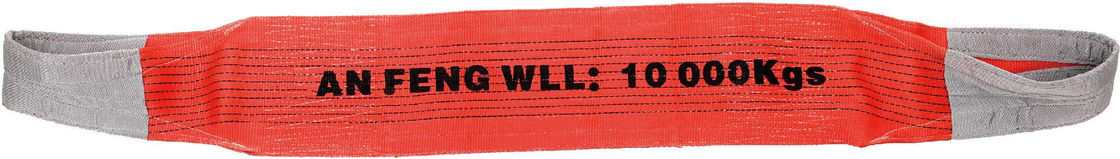

Flat Woven Polyester Webbing Sling Four Layers Eye And Eye 150mm
Basic Properties
Place of Origin:
China
Brand Name:
Anfeng / AF
Certification:
CE, GS, ISO9001
Model Number:
FEE-10T
Trading Properties
Minimum Order Quantity:
500 pcs
Price:
Call or Email for quote
Payment Terms:
T/T, L/C
Supply Ability:
10,000 pcs per month
Product Summary
150mm 8:1 Polyester Webbing Sling Eye And Eye Flat Polyester Woven Webbing Sling Description We can manufacture and supply in the standard Eye and Eye Web Sling format: single layer, double layers, three layers and four layers. The slings offer superior cut resistance and abrasion resistance properties to extend the life of sling. Polyester webbing slings are slowly and progressively gaining the market share worldwide because of their unique features. They are a cheaper
Product Details
Highlight:
Four Layers Polyester Webbing Sling
,150mm Flat Polyester Woven Webbing Sling
,Polyester Flat Eye Sling
Material:
High Strength Polyester
Key Word:
Four Layers Eye And Eye Webbing Sling, Polyester Lifting Sling
Shape:
Eye And Eye Flat Webbing
Lifting Capacity:
10,000 Kg
Colour:
Red
Stabdard:
EN 1492-1:2000, AS 1353.1-1997, JB/T 8521-2007
OEM And ODM Services:
Yes, Upon Request
Packing:
Carton + Pallet, Wooden Box, Or Custom
Safety Factor:
8:1
Length:
Custom
Working Temperature:
-40℃ To 100℃
Advantage:
Safe,competitive Price,high Quality
Standard:
JB/T8521.1-2007 JB/T8521.2-2007
Product Description
150mm 8:1 Polyester Webbing Sling Eye And Eye Flat Polyester Woven Webbing Sling
We can manufacture and supply in the standard Eye and Eye Web Sling format: single layer, double layers, three layers and four layers. The slings offer superior cut resistance and abrasion resistance properties to extend the life of sling.
Polyester webbing slings are slowly and progressively gaining the market share worldwide because of their unique features. They are a cheaper alternative to the traditional slings that have been used till date. Flat Web Slings are popular type and are suitable for a wide range of lifting applications, as they are as strong as steel wire rope or chain, and are yet lighter and more flexible in the same lifting capacity. They can be especially suitable for lifting expensive or easily damaged products, due to their soft and safe material.
Eye and Eye Webbing Slings are common type of slings which have eyes sewn into both ends of the sling. The slings can be configured with either a flat eye or twisted eye on both ends. A flat eye can be used in a choker hitch, basket hitch, or vertical hitch, while a twisted eye sling has eyes that are twisted 90° to form a better choker hitch.
Our Four Layers Eye and Eye Webbing Slings are manufactured and supplied in accordance to EN 1492-1:2000, AS 1353.1-1997 or JB/T 8521-2007 Standards which stipulates colour code, labelling and how the sling is sewn together. In order to guard the webbing from unnecessary wear and tear, several coverings are available, in any length, which protects both the sling and fragile loads.
Sling eyes are automatically tapered to a narrower width ranges from 25mm to 300mm on the Four Layers Eye and Eye Web Sling. These slings are used by crane and rigging customers around the world provide for the low profile eye available, which enables sling removal easier when tight clearances are unavoidable.
The advanced manufacturing of webbing slings, photo by Shanghai Anfeng Lifting & Rigging
Benefits of polyester webbing slings
1. Acid resistance — Polyester webbing sling is resistant to bleaching agents and acids. So it can be utilized in acidic environments.
2. Colour-coded — The web slings are colour coded to identify capacity limitations.
3. Firm grip — Polyester webbing slings allow for a firm hold / grip around objects being lifted.
4. Lightweight — The web sling's lightweight making the slings easier to be carried around sites, wrap and store.
5. Low cost — Polyester slings is available at a lower cost in comparison to wire rope slings and chain.
6. Non-explosive — Polyester slings can be safely used in explosive atmospheres (e.g. mining), the material is both non-sparking and non-conductive.
7. Quick drying — As a material, polyester is quick to dry because of its hydrophobic attributes.
8. Resistance and durability — Other than acid, polyester slings are resistant to many chemicals, oil, moisture, and grease. In addition to that, polyester is resistant to UV degradation.
Anfeng Four Layers Eye and Eye Webbing Sling technical data sheet
| code | W.L.L | Colour | Approximate Width | Min.length | Max.length |
| 6:1 7:1 8:1 | |||||
| tons | mm mm mm | m | m | ||
| FEE-2T FEE-4T FEE-6T |
2.0 4.0 6.0 |
purple green yellow |
25 30 50 50 60 65 75 90 90 |
1.1 1.3 1.6 |
100 100 100 |
| FEE-8T FEE-10T FEE-12T |
8.0 10.0 12.0 |
gray red brown |
100 120 120 125 150 150 150 180 200 |
1.7 1.9 2.0 |
100 100 100 |
| FEE-16T FEE-20T FEE-24T |
16.0 20.0 24.0 |
blue orange orange |
200 240 240 250 300 - 300 - - |
2.0 2.2 2.3 |
100 100 100 |
| Other sizes can be produced upon request | |||||
Inspection, testing and certification
All of our webbing slings are manufactured under strict quality control process. The products will be sampled and tested according to a certain ratio and provided with tensile test cetification before delivery.
Our technical staffs make sure the products meet all safety and manufacturing requirements. Upon request, Anfeng provides customers with DNV-GL, CCS, ABS and other third-party inspection certificates.
Company profile
Based in Shanghai Free Trade Zone, Shanghai Anfeng Lifting & Rigging Ltd. is an experienced technical and sales company specialized in supplying webbing slings, round slings, wire rope and slings, chains, rigging accessories and more.
