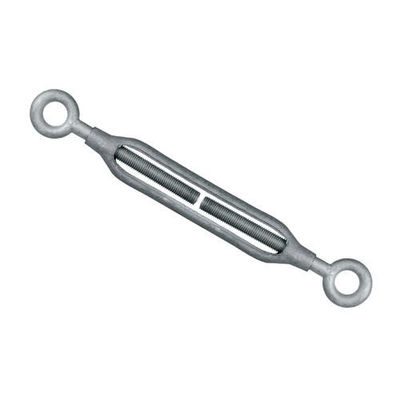

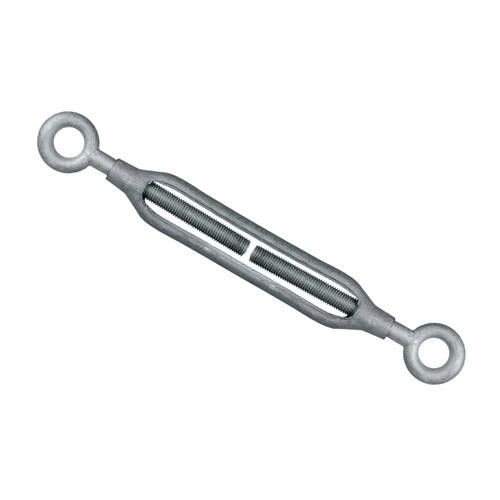

ISO 0.25 X 4" Galvanized Heavy Duty Turnbuckle
Basic Properties
Place of Origin:
China
Brand Name:
Anfeng / AF
Certification:
CE, GS, ISO
Model Number:
/
Trading Properties
Minimum Order Quantity:
500 pcs
Price:
Call or Email for quote
Payment Terms:
T/T, L/C
Supply Ability:
10,000 pcs per month
Product Summary
1/4 x 4" Eye & Eye galvanized Turnbuckle, open body, rigging accessories Eye & Eye Turnbuckle Product Description Our galvanized Eye & Eye type open body Turnbuckles are designed with forged elongated eye ends are designed to maximize ease of attachment and minimize stress on the eye. The turnbuckles are intended to provide an adjustable rigging connection which applies tension between two components (usually wire ropes and suspension points). Our turnbuckles comply with the
Product Details
Highlight:
ISO Heavy Duty Turnbuckle
,CE Heavy Duty Turnbuckle
,galvanized turnbuckle
Key Word:
Turnbuckles, Eye & Eye Galvanized Turnbuckle, Open Body, Rigging Accessories, Rigging Hardware
Type Of Turnbuckle:
Eye & Eye Type
Material:
Galvanized Steel
Finish:
End Fittings Quenched And Tempered, Body Heat Treated
Standard:
ASTM F1145-92
OEM Or ODM Services:
Yes, Upon Request
Packaging:
Carton + Pallet, Wooden Box, Or Custom
Product Description
1/4 x 4" Eye & Eye galvanized Turnbuckle, open body, rigging accessories
Eye & Eye Turnbuckle
Product Description
Our galvanized Eye & Eye type open body Turnbuckles are designed with forged elongated eye ends are designed to maximize ease of attachment and minimize stress on the eye.
The turnbuckles are intended to provide an adjustable rigging connection which applies tension between two components (usually wire ropes and suspension points).
Our turnbuckles comply with the requirements of ASTM F1145-92. They are hot dip galvanized for durability and weather resistance. Recommended for straight or in-line pull only.
Turnbuckles may be used on its own or in conjunction with other turnbuckles to increase length in the assembly. They can be used with a length of rope, cable, or other rigging assembly as a connection point to adjust slack and tension within the line. Can be used for something as simple as a fence or as complicated as a suspension bridge. Commonly used in some industries like construction, aviation, maritime transport, sports and entertainment.
Main features:
- TURNBUCKLES RECOMMENDED FOR STRAIGHT OR IN-LINE PULL ONLY.
- Meets or exceeds all requirements of ASTM F1145-92.
- End fittings are Quenched and Tempered or Normalized, bodies heat treated by normalizing.
- Hot Dip galvanized steel.
- Hot Dip galvanized steel.
- Lock Nuts available for all sizes.
- Proof load is 2.5 times of WLL, and Breaking load is 5 times of WLL.
- Proof load is 2.5 times of WLL, and Breaking load is 5 times of WLL.
We are supplying turnbuckles with types of Jaw and jaw, Eye and jaw, Eye and eye, Hook and hook, Hook and eye.
About Anfeng Lifting & Rigging
Based in Shanghai Free Trade Zone, Shanghai Anfeng Lifting & Rigging Ltd. is an experienced technical and sales company specialized in supplying webbing slings, round slings, wire rope and slings, chains, rigging accessories and more.
Anfeng supplies steel wire ropes, wire rope slings, lifting chains and accessories, webbing slings, round slings, fall protection harness, typhoon resistant series products, lashing, offshore mooring lines, chain hoists, lever hoists, electric hoists, shackles up to 1500t, and lifting points.
We have earned a reputation globally as a provider of high quality products, supported by our trained staff and high standard of QA/QC procedure and inspections. Our technical staffs make sure the products meet all safety and manufacturing requirements. Upon request, Anfeng provides customers with DNV-GL, CCS, ABS and other third-party inspection certificates.
If you want to find out more about our products, be up to date with our latest development, please contact us or visit us in Shanghai!
