1.25 Inch WLL 12 Tonne Wide Body Shackles , Safety Pin Bow Shackle
Basic Properties
Place of Origin:
China
Brand Name:
Anfeng / AF
Certification:
CE, GS, ISO
Model Number:
JB-12.0
Trading Properties
Minimum Order Quantity:
500 pcs
Price:
Call or Email for quote
Payment Terms:
T/T, L/C
Supply Ability:
10,000 pcs per month
Product Summary
1-1/4" Standard Bow Shackle with safety screw pin, type JB, WLL 12 tonne, Anchor Shackle Screw Pin Anchor / Bow Shackles Product Description All our screw pin bow shackles are quenched and tempered, with high quality carbon steel shackle bows and alloy steel pins. Shackles bows are all hot dip galvanized, screws pins are painted yellow or customized upon request. Bow shackles and anchor shackles are both used interchangeably and refer to a type of shackle with a larger, round
Product Details
Highlight:
1.25'' Wide Body Shackles
,12t Wide Body Shackles
,RR-C-271D safety pin bow shackle
Product Name:
Screw Pin Shackle, Type JB, Anchor Bow Shackle
Material:
High Performance Carbon Steel With Alloy Steel Pin, Quenched And Tempered
Finish:
Shackle Bow And Pin Painted Silver
WLL:
12 Tonne
Standard:
ASME B30.26-2004, RR-C-271D
Type Of Shackle:
Bow Shackle
OEM Or ODM Services:
Yes, Upon Request
Packaging:
Carton + Pallet, Wooden Box, Or Custom
Product Description
1-1/4" Standard Bow Shackle with safety screw pin, type JB, WLL 12 tonne, Anchor Shackle
Screw Pin Anchor / Bow Shackles
Product Description
All our screw pin bow shackles are quenched and tempered, with high quality carbon steel shackle bows and alloy steel pins. Shackles bows are all hot dip galvanized, screws pins are painted yellow or customized upon request.
Bow shackles and anchor shackles are both used interchangeably and refer to a type of shackle with a larger, round “O” shaped bow. A larger bow shape allows these types of shackles to be side loaded or used in multiple sling-leg connections.
On a screw pin bow shackle, a threaded pin is inserted through the ears and tightened down. The shackles have a large rounded shape that allows them to take loads from many directions without developing significant side load. That makes them ideal for use with multiple-leg slings, connecting slings to load rings, and accommodating a wider strap. However, reduction to the WLL must be accounted for when used in a side-loading situation.
The screw pin configuration is best for use in applications that are temporary, or require repeated and/or quick connections and disconnections.They are not recommended for permanent or long-term installations.

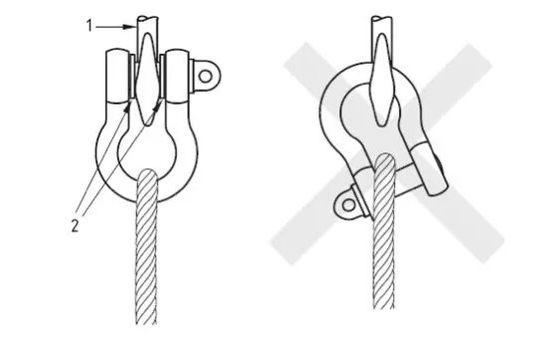

Be aware that a live line, such as a sling being used in a choker hitch configuration, can cause the screw pin to be rotated, torqued, or twisted which can cause the pin to unthread itself. Always tighten the pin prior to each lift. When using a screw pin shackle, the screw pin threads shall be fully engaged, tight, and the shoulder should be in contact with the shackle body.
Main features:
- All screw pin shackles are quenched and tempered, with high quality carbon steel shackle bows and alloy steel pins.
- Shackles bows are all hot dip galvanized, screws pins are painted yellow or customized upon request.
- Meets or exceeds all requirements of ASME B30.26-2004 and RR-C-271D.
- Proof Load is 2 times of the Working Load Limit. Minimum Breaking Load is 6 times of the Working Load Limit.
Specification
| Product code | Nominal size (in.) |
WLL (tons) |
Dimensions (mm) | Weight (kg) |
|||||||||||||

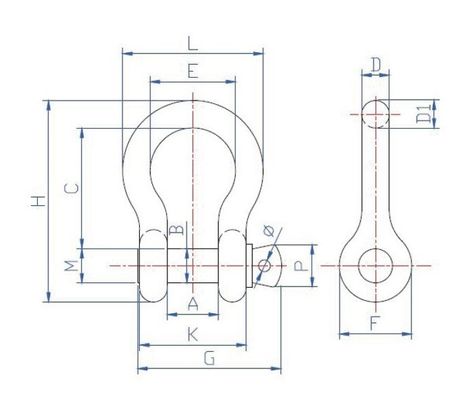

| A | B | C | D | D1 | E | F | L | K | H | G | P | Φ | M | ||||
| JB-0.75 | 5/16 | 0.75 | 13.5 | 9.5 | 30.2 | 7.9 | - | 21.3 | 19.0 | 37.1 | 29.3 | 53.1 | 43.0 | 11.5 | 5.0 | 9.5 | 0.09 |
| JB-1.00 | 3/8 | 1.00 | 16.8 | 11.1 | 35.7 | 9.7 | - | 26.2 | 23.1 | 45.6 | 36.2 | 63.2 | 52.0 | 13.0 | 5.5 | 11.1 | 0.14 |
| JB-1.50 | 7/16 | 1.50 | 19.0 | 12.7 | 42.2 | 11.2 | - | 29.5 | 26.9 | 51.9 | 41.4 | 73.9 | 58.0 | 15.0 | 6.0 | 12.7 | 0.17 |
| JB-2.00 | 1/2 | 2.00 | 20.6 | 16.0 | 47.2 | 12.7 | - | 33.1 | 30.2 | 58.5 | 46.0 | 83.5 | 68.0 | 20.0 | 8.0 | 16.0 | 0.33 |
| JB-3.25 | 5/8 | 3.25 | 27.0 | 19.0 | 60.0 | 16.0 | - | 42.0 | 39.0 | 74.0 | 59.0 | 106.0 | 85.0 | 25.0 | 10.0 | 20.0 | 0.62 |
| JB-4.75 | 3/4 | 4.75 | 31.8 | 22.1 | 71.0 | 19.0 | - | 51.0 | 47.0 | 89.0 | 69.8 | 125.0 | 101.0 | 28.0 | 11.0 | 22.0 | 1.07 |
| JB-6.50 | 7/8 | 6.50 | 36.6 | 25.1 | 84.0 | 22.0 | - | 58.0 | 54.0 | 102.0 | 80.6 | 147.0 | 117.0 | 33.0 | 12.0 | 27.0 | 1.64 |
| JB-8.50 | 1 | 8.50 | 42.9 | 28.5 | 95.0 | 25.0 | - | 68.0 | 60.0 | 118.0 | 93.0 | 166.0 | 134.0 | 36.0 | 14.0 | 30.0 | 2.28 |
| JB-9.50 | 1-1/8 | 9.50 | 46.0 | 31.7 | 108.0 | 28.0 | - | 74.0 | 66.0 | 130.0 | 102.0 | 185.0 | 146.0 | 40.0 | 15.0 | 33.0 | 3.36 |
| JB-12.0 | 1-1/4 | 12.00 | 51.5 | 35.1 | 119.0 | 32.0 | - | 82.0 | 76.0 | 146.0 | 115.0 | 208.0 | 166.0 | 43.0 | 16.0 | 36.0 | 4.31 |
| JB-13.5 | 1-3/8 | 13.50 | 57.0 | 38.0 | 131.0 | 35.0 | - | 89.0 | 84.0 | 159.0 | 127.0 | 228.0 | 180.0 | 46.0 | 18.0 | 38.0 | 6.14 |
| JB-17.0 | 1-1/2 | 17.00 | 60.5 | 41.5 | 148.0 | 38.0 | - | 98.0 | 92.0 | 174.0 | 136.5 | 254.0 | 194.0 | 49.0 | 18.0 | 42.0 | 7.80 |
| JB-25.0 | 1-3/4 | 25.00 | 73.0 | 50.8 | 177.0 | 45.0 | - | 127.0 | 109.0 | 217.0 | 163.0 | 303.0 | 233.0 | 59.0 | 20.0 | 51.0 | 12.60 |
| JB-35.0 | 2 | 35.00 | 82.5 | 57.1 | 197.0 | 51.0 | - | 146.0 | 127.0 | 248.0 | 184.5 | 341.0 | 260.0 | 65.0 | 22.0 | 57.0 | 20.40 |
| JB-55.0 | 2-1/2 | 55.00 | 105.0 | 69.8 | 267.0 | 69.0 | 79.5 | 179.0 | 150.0 | 321.0 | 235.0 | 455.0 | 326.0 | 78.0 | 28.0 | 70.0 | 38.90 |
| JB-85.0 | 3 | 85.00 | 127.0 | 85.0 | 327.0 | 79.0 | 92.0 | 200.0 | 165.0 | 371.0 | 279.0 | 546.0 | 381.0 | 91.0 | 32.0 | 85.0 | - |
