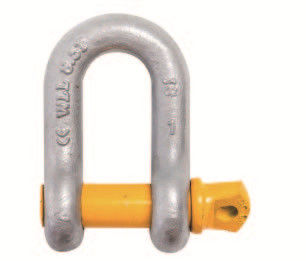

WLL 8.5 Tonne Wide Body Shackles , 1 Inch Screw Pin D Shackle

WLL 8.5 Tonne Wide Body Shackles , 1 Inch Screw Pin D Shackle
WLL 8.5 Tonne Wide Body Shackles , 1 Inch Screw Pin D Shackle WLL 8.5 Tonne Wide Body Shackles , 1 Inch Screw Pin D Shackle

Large Image :  WLL 8.5 Tonne Wide Body Shackles , 1 Inch Screw Pin D Shackle

Product Details:
Place of Origin: China
Brand Name: Anfeng / AF
Certification: CE, GS, ISO
Model Number: JS-8.50
Payment & Shipping Terms:
Minimum Order Quantity: 500 pcs
Price: Call or Email for quote
Packaging Details: Carton + pallet, wooden box, or custom
Delivery Time: Within 45 days after order confirmation
Payment Terms: T/T, L/C
Supply Ability: 10,000 pcs per month
Contact Now

WLL 8.5 Tonne Wide Body Shackles , 1 Inch Screw Pin D Shackle

Description
Key Word: Standard Dee Shackle With Screw Pin, Type JS, Chain Shackle Material: High Performance Carbon Steel With Alloy Steel Pin, Grade 6, Quenched And Tempered
WLL: 8500kg Finish: Shackle Bow Painted Silver And Pin Painted Yellow Or Customized
Standard: ASME B30.26-2004, RR-C-271D Type Of Shackle : Dee Shackle
Shackle Pin: With Safety Screw Pin Packaging: Carton + Pallet, Wooden Box, Or Custom
OEM Or ODM Services: Yes, Upon Request
High Light:

8.5t Wide Body Shackles

,

1'' Wide Body Shackles

,

RR-C-271D screw pin d shackle



1" Standard Dee Shackle with safety screw pin, type JS, WLL 8.5 tonne, Chain Shackle

Screw Pin Dee Shackles / Chain Shackles

Product Description
Our Dee Shackle with safety screw pin is ideal for use with multiple-leg slings, connecting slings to load rings, and accommodating a wider strap. However, reduction to the WLL must be accounted for when used in a side-loading situation.

On a screw pin dee shackle, a threaded pin is inserted through the ears and tightened down. The shackles have a large rounded shape that allows them to take loads from many directions without developing significant side load.

Dee Shackles, also referred to as Chain Shackles, which have a D-shaped bow that is narrower than Anchor / Bow Shackles. They are designed and rated for in-line tension, they should not be side loaded, as side loading can twist or bend the bow of the shackle. When using a chain shackle, the center line of the load should always coincide with the center line of the shackle when in use.

The screw pin configuration is best for use in applications that are temporary, or require repeated and/or quick connections and disconnections.They are not recommended for permanent or long-term installations.

Be aware that a live line, such as a sling being used in a choker hitch configuration, can cause the screw pin to be rotated, torqued, or twisted which can cause the pin to unthread itself. Always tighten the pin prior to each lift. When using a screw pin shackle, the screw pin threads shall be fully engaged, tight, and the shoulder should be in contact with the shackle body.

Main features:
- All screw pin shackles are quenched and tempered, with high quality carbon steel shackle bows and alloy steel pins.
- Shackles bows are all hot dip galvanized, screws pins are painted yellow or customized upon request.
- Meets or exceeds all requirements of ASME B30.26-2004 and RR-C-271D.
- Proof Load is 2 times of the Working Load Limit. Minimum Breaking Load is 6 times of the Working Load Limit.

Specification
WLL 8.5 Tonne Wide Body Shackles , 1 Inch Screw Pin D Shackle 0
Product code Nominal size (in.)

WLL

(tons)

 Dimensions (mm) Weight
(kg)
A B G D H F K L P Φ M
JS-0.75 5/16 0.75 13.5 9.5 25.0 7.9 29.3 19.0 48.5 43.0 11.5 5.0 9.5 0.08
JS-1.00 3/8 1.00 16.8 11.1 31.0 9.7 36.2 23.1 58.4 52.0 13.0 5.5 11.1 0.13
JS-1.50 7/16 1.50 19.0 12.7 36.0 11.2 41.4 26.9 67.6 58.0 15.0 6.0 12.7 0.20
JS-2.00 1/2 2.00 20.6 16.0 41.0 12.7 46.0 30.2 77.0 68.0 20.0 8.0 16.0 0.27
JS-3.25 5/8 3.25 27.0 19.0 51.0 16.0 59.0 39.0 96.0 85.0 25.0 10.0 20.0 0.57
JS-4.75 3/4 4.75 31.8 22.1 60.0 19.0 69.8 47.0 114.0 101.0 28.0 11.0 22.0 1.20
JS-6.50 7/8 6.50 36.6 25.1 71.0 22.0 80.6 54.0 134.0 117.0 33.0 12.0 27.0 1.43
JS-8.50 1 8.50 42.9 28.5 81.0 25.0 93.0 60.0 152.0 134.0 36.0 14.0 30.0 2.15
JS-9.50 1-1/8 9.50 46.0 31.7 91.0 28.0 102.0 66.0 168.0 146.0 40.0 15.0 33.0 3.06
JS-12.0 1-1/4 12.00 51.5 35.1 100.0 32.0 115.5 76.0 189.0 166.0 43.0 16.0 36.0 4.11
JS-13.5 1-3/8 13.50 57.0 38.0 111.0 35.0 127.0 84.0 208.0 180.0 46.0 18.0 38.0 5.28
JS-17.0 1-1/2 17.00 60.5 41.5 124.0 38.0 136.5 92.0 230.0 194.0 49.0 18.0 42.0 7.23
JS-25.0 1-3/4 25.00 73.0 50.8 146.0 45.0 163.0 109.0 272.0 233.0 59.0 20.0 51.0 12.10
JS-35.0 2 35.00 82.5 57.1 171.0 51.0 184.5 127.0 314.0 260.0 65.0 22.0 57.0 19.20
JS-55.0 2-1/2 55.00 104.0 69.8 203.0 65.0 234.0 150.0 378.0 326.0 78.0 28.0 70.0 32.50
JS-85.0 3 85.00 127.0 85.0 216.0 76.0 279.0 165.0 417.5 381.0 91.0 32.0 85.0 -



About Anfeng Lifting & Rigging

Based in Shanghai Free Trade Zone, Shanghai Anfeng Lifting & Rigging Ltd. is an experienced technical and sales company specialized in supplying webbing slings, round slings, wire rope and slings, chains, rigging accessories and more.

Anfeng supplies steel wire ropes, wire rope slings, lifting chains and accessories, webbing slings, round slings, fall protection harness, typhoon resistant series products, lashing, offshore mooring lines, chain hoists, lever hoists, electric hoists, shackles up to 1500t, and lifting points.

We have earned a reputation globally as a provider of high quality products, supported by our trained staff and high standard of QA/QC procedure and inspections. Our technical staffs make sure the products meet all safety and manufacturing requirements. Upon request, Anfeng provides customers with DNV-GL, CCS, ABS and other third-party inspection certificates.

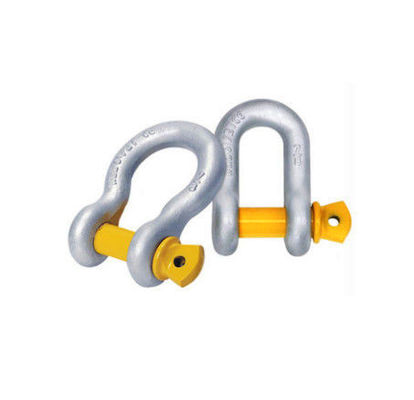

WLL 8.5 Tonne Wide Body Shackles , 1 Inch Screw Pin D Shackle 1
