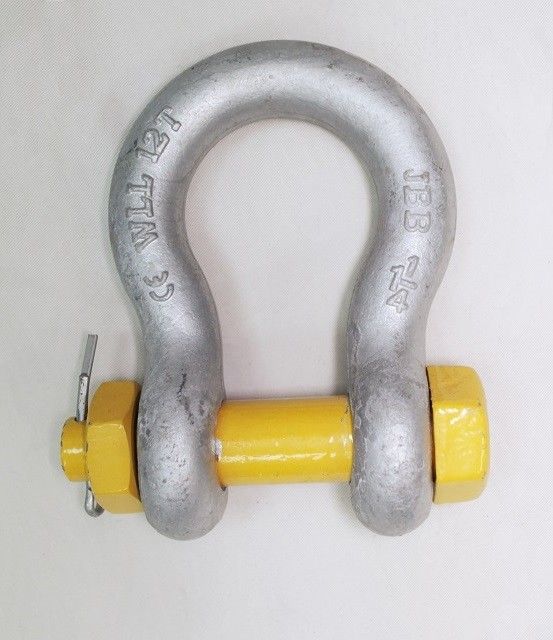

Yellow 1-1/4" WLL 12 Tonne Wide Body Shackles With Safety Bolt
Basic Properties
Place of Origin:
China
Brand Name:
Anfeng / AF
Certification:
CE, GS, ISO
Model Number:
JBB-12.0
Trading Properties
Minimum Order Quantity:
500 pcs
Price:
Call or Email for quote
Payment Terms:
T/T, L/C
Supply Ability:
10,000 pcs per month
Product Summary
1-1/4" Bolt Type Shackle, Standard Bow Shackle with safety bolt, WLL 12 tonne, Anchor Bow Shackle Bolt Type Anchor / Bow Shackles Product Description Our Bolt Type Bow Shackle is a bow shackle with a safety bolt. All our shackles are quenched and tempered, with high quality carbon steel shackle bows and alloy steel pins. Bow shackles and anchor shackles are both used interchangeably and refer to a type of shackle with a larger, round “O” shaped bow. A larger bow shape allows
Product Details
Highlight:
1-1/4" Wide Body Shackles
,12t Wide Body Shackles
,RR-C-271D yellow pin shackles
Key Word:
Bolt Type Shackle, Standard Bow Shackle With Safety Bolt, Anchor Bow Shackle
Material:
High Performance Carbon Steel With Alloy Steel Pin, Grade 6, Quenched And Tempered
Finish:
Shackle Bow Painted Silver And Pin Painted Yellow Or Red
WLL:
12 Tonne
Standard:
ASME B30.26-2004, RR-C-271D
Customized Service:
Yes, Such As OEM Or ODM Services
Packaging:
Carton + Pallet, Wooden Box, Or Custom
Type Of Shackle:
Standard Bow Shackle
Product Description
1-1/4" Bolt Type Shackle, Standard Bow Shackle with safety bolt, WLL 12 tonne, Anchor Bow Shackle

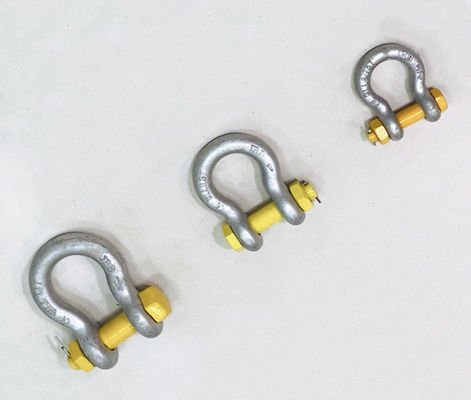

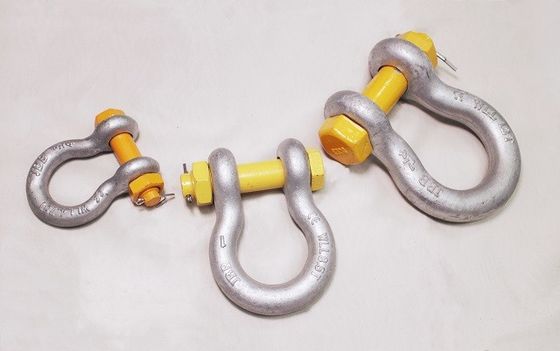

Bolt Type Anchor / Bow Shackles
Product Description
Our Bolt Type Bow Shackle is a bow shackle with a safety bolt. All our shackles are quenched and tempered, with high quality carbon steel shackle bows and alloy steel pins.
Bow shackles and anchor shackles are both used interchangeably and refer to a type of shackle with a larger, round “O” shaped bow. A larger bow shape allows these types of shackles to be side loaded or used in multiple sling-leg connections.
A bolt type shackle is a more secure version used in rigging that features the combination of a bolt and nut located alongside a cotter pin. The shackle offers a double safety which prevents accidental unscrewing of the pin. Our Bolt Type Shackle is suitable for both one-leg and multi-leg systems.
Bolt type shackles can be used in any application that uses a round pin or a screw pin. These types of shackles remain secure even when the shackle is subjected to rotation or torque. Long-term durability is assured due to the galvanization of the shackles.
Bolt type shackles are practical in many rigging applications where the anchor bolt is expected to experience some rotation. The tightening nut and the cotter pin eliminate the need to tighten the pin prior to every lift or movement of a load, so bolt type shackles are excellent choices for semi-permanent or long-term installations, or where the load may slide on the shackle pin causing it to rotate.
Main features:
- All our shackles are quenched and tempered, with high quality carbon steel shackle bows and alloy steel pins.
- Shackles bows are all hot dip galvanized, pins are painted yellow or customized upon request.
- Meets or exceeds all requirements of ASME B30.26-2004 and RR-C-271D.
- Proof Load is 2 times of the Working Load Limit. Minimum Breaking Load is 6 times of the Working Load Limit.
Specification
| Product code |
Nominal size (in.) |
WLL (tons) |
Dimensions (mm) |
Weight (kg) |
|||||||||
| A | B | C | D | D1 | E | F | L | K | H | ||||
| JBB-1.50 | 7/16 | 1.50 | 19.0 | 12.7 | 42.2 | 11.2 | - | 29.5 | 26.9 | 51.9 | 41.4 | 73.9 | 0.22 |
| JBB-2.00 | 1/2 | 2.00 | 20.6 | 16.0 | 47.2 | 12.7 | - | 33.1 | 30.2 | 58.5 | 46.0 | 83.5 | 0.34 |
| JBB-3.25 | 5/8 | 3.25 | 27.0 | 19.0 | 60.0 | 16.0 | - | 42.0 | 39.0 | 74.0 | 59.0 | 106.0 | 0.68 |
| JBB-4.75 | 3/4 | 4.75 | 31.8 | 22.1 | 71.0 | 19.0 | - | 51.0 | 47.0 | 89.0 | 69.8 | 125.0 | 1.11 |
| JBB-6.50 | 7/8 | 6.50 | 36.6 | 25.1 | 84.0 | 22.0 | - | 58.0 | 54.0 | 102.0 | 80.6 | 147.0 | 1.66 |
| JBB-8.50 | 1 | 8.50 | 42.9 | 28.5 | 95.0 | 25.0 | - | 68.0 | 60.0 | 118.0 | 93.0 | 166.0 | 2.35 |
| JBB-9.50 | 1-1/8 | 9.50 | 46.0 | 31.7 | 108.0 | 28.0 | - | 74.0 | 66.0 | 130.0 | 102.0 | 185.0 | 3.22 |
| JBB-12.0 | 1-1/4 | 12.00 | 51.5 | 35.1 | 119.0 | 32.0 | - | 82.0 | 76.0 | 146.0 | 115.5 | 208.0 | 4.98 |
| JBB-13.5 | 1-3/8 | 13.50 | 57.0 | 38.0 | 131.0 | 35.0 | - | 89.0 | 84.0 | 159.0 | 127.0 | 228.0 | 6.36 |
| JBB-17.0 | 1-1/2 | 17.00 | 60.5 | 41.5 | 148.0 | 38.0 | - | 98.0 | 92.0 | 174.0 | 136.5 | 254.0 | 8.14 |
| JBB-25.0 | 1-3/4 | 25.00 | 73.0 | 50.8 | 177.0 | 45.0 | - | 127.0 | 109.0 | 217.0 | 163.0 | 303.0 | 14.29 |
| JBB-35.0 | 2 | 35.00 | 82.5 | 57.1 | 197.0 | 51.0 | - | 146.0 | 127.0 | 248.0 | 184.5 | 341.0 | 20.10 |
| JBB-42.0 | 2-1/4 | 42.00 | 95.0 | 63.0 | 222.0 | 57.0 | - | 160.0 | 143.0 | 274.0 | 209.0 | 382.0 | 31.00 |
| JBB-55.0 | 2-1/2 | 55.00 | 105.0 | 69.8 | 267.0 | 69.0 | 79.5 | 179.0 | 150.0 | 321.0 | 235.0 | 455.0 | 43.60 |
| JBB-85.0 | 3 | 85.00 | 127.0 | 85.0 | 327.0 | 79.0 | 92.0 | 200.0 | 165.0 | 371.0 | 279.0 | 546.0 | 66.98 |
| JBB-120.0 | 3-1/2 | 120.00 | 133.0 | 95.0 | 372.0 | 92.0 | 111.0 | 229.0 | 203.0 | 432.0 | 323.0 | 632.0 | 103.00 |
| JBB-150.0 | 4 | 150.00 | 140.0 | 107.0 | 368.0 | 100.0 | 115.0 | 254.0 | 228.0 | 457.0 | 340.0 | 651.5 | 141.00 |
| JBB-250.0 | 5 | 250.00 | 216.0 | 135.0 | 506.5 | 127.0 | - | 330.0 | 305.0 | 584.0 | 470.0 | 851.0 | 318.00 |
