EN 13411-4 70mm Wire Rope Sling Assembly , 5:1 Short Bow Socket

Certification
China Shanghai Anfeng Lifting & Rigging LTD. certification
China Shanghai Anfeng Lifting & Rigging LTD. certification
I'm Online Chat Now

EN 13411-4 70mm Wire Rope Sling Assembly , 5:1 Short Bow Socket

EN 13411-4 70mm Wire Rope Sling Assembly , 5:1 Short Bow Socket
EN 13411-4 70mm Wire Rope Sling Assembly , 5:1 Short Bow Socket EN 13411-4 70mm Wire Rope Sling Assembly , 5:1 Short Bow Socket

Large Image :  EN 13411-4 70mm Wire Rope Sling Assembly , 5:1 Short Bow Socket

Product Details:
Place of Origin: China
Brand Name: Anfeng / AF
Certification: CE, GS, ISO 9001
Model Number: SPA-04
Payment & Shipping Terms:
Minimum Order Quantity: 500 pcs
Price: Call or Email for quote
Packaging Details: Carton + pallet, wooden box, or custom
Delivery Time: Within 45 days after order confirmation
Payment Terms: T/T, L/C
Supply Ability: 10,000 pcs per month

EN 13411-4 70mm Wire Rope Sling Assembly , 5:1 Short Bow Socket

Description
Brand Name: Anfeng / AF Standard: EN 13411-4:2002
Material: Galvanized Steel Wire Rope Safety Factor: 5:1
Strength: 1770 MPa Length: Customized
Key Word: Short Bow Socket Wire Rope Sling, Closed Spelter Socket Sling, Long-term Durability OEM Or ODM Services: Yes, Upon Request
Place Of Origin: Shanghai Or Guangzhou, China Packing: Carton + Pallet, Wooden Box, Or Custom
Highlight:

70mm Wire Rope Sling Assembly

,

EN 13411-4 Wire Rope Sling Assembly

,

5:1 Short Bow Socket


70mm Wire Rope Sling with Short Bow Socket, Closed Spelter Socket Sling, long-term durability

Wire Rope Sling and Wire Rope End Fittings

Product Description

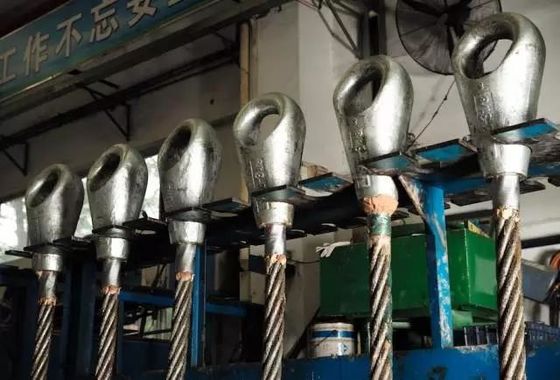

Short Bow Socket is a closed spelter socket. The socket is made from high tensile, quenched and tempered cast steel, with a different chemical composition and with extremely high mechanical properties, while galvanization ensures its long-term durability. Our Short Bow Socket meets RR-S-550D (type B) requirements and is available for wire rope with a diameter from 50mm to 92mm.

Specification
EN 13411-4 70mm Wire Rope Sling Assembly , 5:1 Short Bow Socket 0 EN 13411-4 70mm Wire Rope Sling Assembly , 5:1 Short Bow Socket 1


Code

Diameter

wire rope

Dimensions (mm)

Weight

(kg)

(in.) (mm) A B C D E F G
SPA-01 2-2-1/8 50-54 63.5 120.6 133.3 178.3 53.0 209.5 406.9 25.86
SPA-02 2-1/4-2-3/8 57-60 70.6 133.3 146.0 196.0 58.6 232.6 454.6 34.47
SPA-03 2-1/2-2-5/8 64-66 77.4 149.3 170.4 216.6 68.3 257.3 505.2 47.63
SPA-04 2-3/4-2-7/8 70-73 84.5 165.1 181.1 237.2 76.2 281.6 549.4 62.60
SPA-05 3-3-1/8 76-79 88.9 184.1 196.6 261.8 82.5 312.6 596.9 86.64
SPA-06 3-1/4-3-3/8 82-85 98.5 193.5 222.2 277.1 88.9 333.5 654.0 103.87
SPA-07 3-1/2-3-5/8 89-92 105.4 203.2 230.1 297.6 93.7 354.5 692.1 126.55

Note:
1. Reference standard: EN 13411-4: 2002, RR-S-550D (type B).
2. The above metioned wire ropes feature 6 x 19 + IWRC, 6 x 37 (a) + IWRC, 6 x 61 (a) + IWRC and 8 x 61 (a) + IWRC construction, with 1770 MPa in tension strength.
3. The wire rope structure, tensile strength and working load limited could be customized according to customer's request.
4. Safety Factor for the wire rope sling is 5:1.

EN 13411-4 70mm Wire Rope Sling Assembly , 5:1 Short Bow Socket 2

About Anfeng Lifting & Rigging

Based in Shanghai Free Trade Zone, Shanghai Anfeng Lifting & Rigging Ltd. is an experienced technical and sales company specialized in supplying webbing slings, round slings, wire rope and slings, chains, rigging accessories and more.

Anfeng supplies steel wire ropes, wire rope slings, lifting chains and accessories, webbing slings, round slings, fall protection harness, typhoon resistant series products, lashing, offshore mooring lines, chain hoists, lever hoists, electric hoists, shackles up to 1500t, and lifting points.

We have earned a reputation globally as a provider of high quality products, supported by our trained staff and high standard of QA/QC procedure and inspections. Our technical staffs make sure the products meet all safety and manufacturing requirements. Upon request, Anfeng provides customers with DNV-GL, CCS, ABS and other third-party inspection certificates.

EN 13411-4 70mm Wire Rope Sling Assembly , 5:1 Short Bow Socket 3
