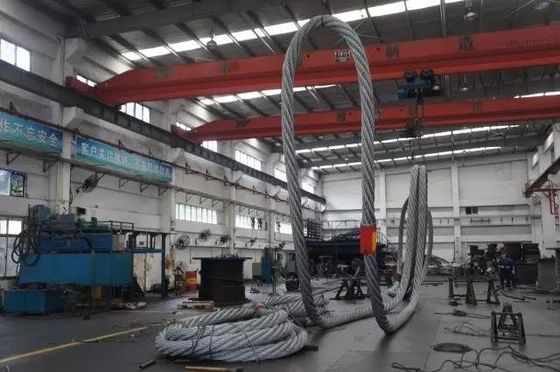

3:1 GB/T 30587 300mm Cable Laid Grommet Sling
Basic Properties
Place of Origin:
China
Brand Name:
Anfeng / AF
Certification:
CE, ISO 9001
Model Number:
CLGH300
Trading Properties
Minimum Order Quantity:
500 pcs
Price:
Call or Email for quote
Payment Terms:
T/T, L/C
Supply Ability:
10,000 pcs per month
Product Summary
300mm Cable Laid Grommet, high capacity, large diameter, multi-wire strands sling, for Heavy Duty Application Grommet / Endless Cable Laid Wire Rope Sling, steel core Product Description Our high capacity Cable Laid Grommets are suitable for heavy duty operations. They are endless wire rope lifting slings made from one continuous length of steel wire rope, formed to make a body composed of 6 outer ropes around a core rope, featuring 6 x 37 (a), 6 x 61 (a), 8 x 61 (a) and 8 x
Product Details
Highlight:
300mm Cable Laid Grommet Sling
,3:1 Cable Laid Grommet Sling
,GB/T 30587 cable laid grommet
Brand Name:
Anfeng / AF
Standard:
EN 13414-3: 2003, GB/T 30587-2014
Material:
Galvanized Steel Wire Rope With Steel Core, Multi-wire Strands
Safety Factor:
3:1
Strength:
1770 MPa
Length:
Customized
Key Word:
Cable Laid Grommet, Endless Wire Rope Sling, High Capacity, Large Diameter, Multi-wire Strands Sling, For Heavy Duty Application
OEM Or ODM Services:
Yes, Upon Request
Place Of Origin:
Shanghai Or Guangzhou, China
Packing:
Carton + Pallet, Wooden Box, Or Custom
Product Description
300mm Cable Laid Grommet, high capacity, large diameter, multi-wire strands sling, for Heavy Duty Application
Grommet / Endless Cable Laid Wire Rope Sling, steel core
Product Description
Our high capacity Cable Laid Grommets are suitable for heavy duty operations.
They are endless wire rope lifting slings made from one continuous length of steel wire rope, formed to make a body composed of 6 outer ropes around a core rope, featuring 6 x 37 (a), 6 x 61 (a), 8 x 61 (a) and 8 x 61 (ab) construction, with 1770 MPa in tension strength. The rope ends are tucked into the body forming the core.
Due to its unique construction of one length of single rope and no terminations, a Cable Laid Grommet is the perfect link between hook and load. It also offers the shortest possible solution in lifting. Highly flexible, they resist kinks and are easy to handle.
They have higher load capacity than general usage Cable Laid Grommet, while with the same rope diameter.
Main features:
- Forms a continuous loop sling
- Available in a wire rope or six strand body
- Mechanical or hand spliced connections
- Available in a wire rope or six strand body
- Mechanical or hand spliced connections
- Steel core for higher carrying capacities.
Specification
| Product code |
Sling Dia. (mm) |
MBL (tons) |
Single-leg grommet WLL (tons) |
Two-leg grommet assembly WLL (tons) |
Four-leg grommet assembly WLL (tons) |
||
| α=0° | α≦45° | 45°<α≦60° | α≦45° | 45°<α≦60° | |||
| CLGH66 | 66 | 317.1 | 63.4 | 88.8 | 63.4 | 133.2 | 95.1 |
| CLGH72 | 72 | 377.4 | 75.5 | 105.7 | 75.5 | 158.5 | 113.2 |
| CLGH78 | 78 | 442.9 | 88.6 | 124.0 | 88.6 | 186.0 | 132.9 |
| CLGH84 | 84 | 513.7 | 102.7 | 143.8 | 102.7 | 215.7 | 154.1 |
| CLGH90 | 90 | 589.7 | 117.9 | 165.1 | 117.9 | 247.7 | 176.9 |
| CLGH96 | 96 | 670.9 | 134.2 | 187.9 | 134.2 | 281.8 | 201.3 |
| CLGH102 | 102 | 757.4 | 151.5 | 212.1 | 151.5 | 318.1 | 227.2 |
| CLGH108 | 108 | 849.1 | 169.8 | 237.7 | 169.8 | 356.6 | 254.7 |
| CLGH120 | 120 | 1,048.3 | 209.7 | 293.5 | 209.7 | 440.3 | 314.5 |
| CLGH132 | 132 | 1,268.4 | 253.7 | 355.2 | 253.7 | 532.7 | 380.5 |
| CLGH144 | 144 | 1,509.5 | 301.9 | 422.7 | 301.9 | 634.0 | 452.9 |
| CLGH156 | 156 | 1,771.6 | 354.3 | 496.0 | 354.3 | 744.1 | 531.5 |
| CLGH168 | 168 | 2,054.6 | 410.9 | 575.3 | 410.9 | 862.9 | 616.4 |
| CLGH180 | 180 | 2,358.6 | 471.7 | 660.4 | 471.7 | 990.6 | 707.6 |
| CLGH192 | 192 | 2,683.6 | 536.7 | 751.4 | 536.7 | 1,127.1 | 805.1 |
| CLGH204 | 204 | 3,029.5 | 605.9 | 848.3 | 605.9 | 1,272.4 | 908.9 |
| CLGH210 | 210 | 3,210.3 | 642.1 | 898.9 | 642.1 | 1,348.3 | 963.1 |
| CLGH216 | 216 | 3,301.0 | 660.2 | 924.3 | 660.2 | 1,386.4 | 990.3 |
| CLGH228 | 228 | 3,678.0 | 735.6 | 1,029.8 | 735.6 | 1,544.7 | 1,103.4 |
| CLGH240 | 240 | 4,075.3 | 815.1 | 1,141.1 | 815.1 | 1,711.6 | 1,222.6 |
| CLGH252 | 252 | 4,493.0 | 898.6 | 1,258.0 | 898.6 | 1,887.1 | 1,347.9 |
| CLGH264 | 264 | 4,931.1 | 986.2 | 1,380.7 | 986.2 | 2,071.1 | 1,479.3 |
| CLGH276 | 276 | 5,389.6 | 1,077.9 | 1,509.1 | 1,077.9 | 2,263.6 | 1,616.9 |
| CLGH288 | 288 | 5,868.4 | 1,173.7 | 1,643.2 | 1,173.7 | 2,464.7 | 1,760.5 |
| CLGH300 | 300 | 6,367.7 | 1,273.5 | 1,782.9 | 1,273.5 | 2,674.4 | 1,910.3 |
| CLGH312 | 312 | 6,887.3 | 1,377.5 | 1,928.4 | 1,377.5 | 2,892.7 | 2,066.2 |
| CLGH324 | 324 | 7,427.2 | 1,485.4 | 2,079.6 | 1,485.4 | 3,119.4 | 2,228.2 |
| CLGH330 | 330 | 7,482.2 | 1,496.4 | 2,095.0 | 1,496.4 | 3,142.5 | 2,244.7 |
| CLGH336 | 336 | 7,756.7 | 1,551.3 | 2,171.9 | 1,551.3 | 3,257.8 | 2,327.0 |
| CLGH348 | 348 | 8,320.7 | 1,664.1 | 2,329.8 | 1,664.1 | 3,494.7 | 2,496.2 |
| CLGH360 | 360 | 8,904.4 | 1,780.9 | 2,493.2 | 1,780.9 | 3,739.9 | 2,671.3 |
| CLGH372 | 372 | 9,508.0 | 1,901.6 | 2,662.2 | 1,901.6 | 3,993.3 | 2,852.4 |
| CLGH384 | 384 | 10,131.3 | 2,026.3 | 2,836.8 | 2,026.3 | 4,255.1 | 3,039.4 |
| CLGH396 | 396 | 10,774.4 | 2,154.9 | 3,016.8 | 2,154.9 | 4,525.2 | 3,232.3 |
| CLGH408 | 408 | 11,437.2 | 2,287.4 | 3,202.4 | 2,287.4 | 4,803.6 | 3,431.2 |
| CLGH420 | 420 | 12,119.9 | 2,424.0 | 3,393.6 | 2,424.0 | 5,090.4 | 3,636.0 |
| CLGH432 | 432 | 12,822.4 | 2,564.5 | 3,590.3 | 2,564.5 | 5,385.4 | 3,846.7 |
| CLGH444 | 444 | 13,544.6 | 2,708.9 | 3,792.5 | 2,708.9 | 5,688.7 | 4,063.4 |
| CLGH456 | 456 | 14,286.7 | 2,857.3 | 4,000.3 | 2,857.3 | 6,000.4 | 4,286.0 |
| CLGH468 | 468 | 15,048.5 | 3,009.7 | 4,213.6 | 3,009.7 | 6,320.4 | 4,514.5 |
| CLGH480 | 480 | 15,830.1 | 3,166.0 | 4,432.4 | 3,166.0 | 6,648.6 | 4,749.0 |
| CLGH492 | 492 | 16,631.5 | 3,326.3 | 4,656.8 | 3,326.3 | 6,985.2 | 4,989.4 |
| CLGH504 | 504 | 17,452.7 | 3,490.5 | 4,886.8 | 3,490.5 | 7,330.1 | 5,235.8 |
| CLGH516 | 516 | 18,293.7 | 3,658.7 | 5,122.2 | 3,658.7 | 7,683.3 | 5,488.1 |
| CLGH528 | 528 | 19,154.4 | 3,830.9 | 5,363.2 | 3,830.9 | 8,044.9 | 5,746.3 |
| CLGH540 | 540 | 20,035.0 | 4,007.0 | 5,609.8 | 4,007.0 | 8,414.7 | 6,010.5 |
| CLGH552 | 552 | 20,935.3 | 4,187.1 | 5,861.9 | 4,187.1 | 8,792.8 | 6,280.6 |
| CLGH564 | 564 | 21,855.4 | 4,371.1 | 6,119.5 | 4,371.1 | 9,179.3 | 6,556.6 |
| CLGH576 | 576 | 22,795.3 | 4,559.1 | 6,382.7 | 4,559.1 | 9,574.0 | 6,838.6 |
| CLGH588 | 588 | 23,755.0 | 4,751.0 | 6,651.4 | 4,751.0 | 9,977.1 | 7,126.5 |
| CLGH600 | 600 | 24,734.5 | 4,946.9 | 6,925.7 | 4,946.9 | 10,388.5 | 7,420.4 |
| CLGH612 | 612 | 25,733.8 | 5,146.8 | 7,205.5 | 5,146.8 | 10,808.2 | 7,720.1 |
| CLGH624 | 624 | 26,752.9 | 5,350.6 | 7,490.8 | 5,350.6 | 11,236.2 | 8,025.9 |
| CLGH636 | 636 | 27,791.7 | 5,558.3 | 7,781.7 | 5,558.3 | 11,672.5 | 8,337.5 |
| CLGH648 | 648 | 28,850.4 | 5,770.1 | 8,078.1 | 5,770.1 | 12,117.2 | 8,655.1 |
| CLGH660 | 660 | 29,928.8 | 5,985.8 | 8,380.1 | 5,985.8 | 12,570.1 | 8,978.6 |
| CLGH672 | 672 | 31,027.0 | 6,205.4 | 8,687.6 | 6,205.4 | 13,031.3 | 9,308.1 |
| CLGH684 | 684 | 32,145.0 | 6,429.0 | 9,000.6 | 6,429.0 | 13,500.9 | 9,643.5 |
| CLGH696 | 696 | 33,282.8 | 6,656.6 | 9,319.2 | 6,656.6 | 13,978.8 | 9,984.8 |
Note:
1. Reference standard: EN 13414-3: 2003, GB/T 30587-2014.
2. The above metioned wire ropes feature 6 x 37 (a), 6 x 61 (a), 8 x 61 (a) and 8 x 61 (ab) construction, with 1770 MPa in tension strength.
3. Surface treatment of wire ropes can be galvanized and grease free, galvanized with grease and uncoated with grease.
4. The wire rope structure, tensile strength and working load limited could be customized according to customer's request.
5. Minimum Breaking Load is 5 times of Working Load Limited.
6. Safety factor is 5:1 for the above mention wire ropes with rope diameter of below 60mm, and rope diameter above 150mm with a safety factor of 3:1.
7. Higher load capacity than the general usage Cable Laid Grommet, while with the same rope diameter.
