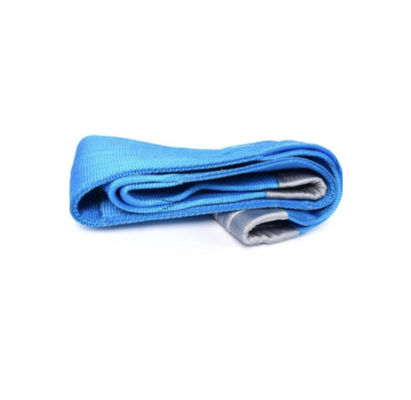

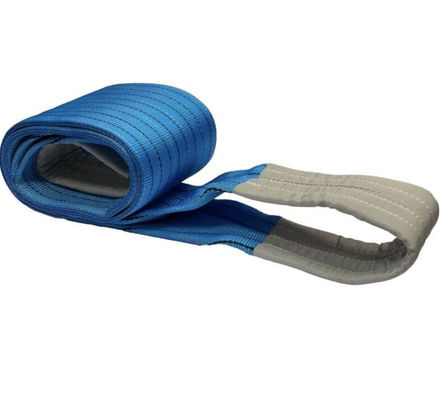

4 tonne Single Layer Eye and Eye Polyester Webbing Sling
High Strength Heavy Lift Sling, Flat Webbing
We are supplying high quality and durable webslings that are ideal for lifting applications as an alternative to chain slings, wire rope slings or round slings. Light weight and easy to transport, a cost effective and efficient alternative. They can be especially suitable for lifting expensive or easily damaged products, due to their soft and safe material.
Eye and Eye Webbing Slings are common type of slings which have eyes sewn into both ends of the sling. The slings can be configured with either a flat eye or twisted eye on both ends. A flat eye can be used in a choker hitch, basket hitch, or vertical hitch, while a twisted eye sling has eyes that are twisted 90° to form a better choker hitch.
We can manufacture and supply in the standard Eye and Eye Web Sling format: single layer, double layers, three layers and four layers. The slings offer superior cut resistance and abrasion resistance properties to extend the life of sling.
Our Single Layer Eye and Eye Webbing Slings are manufactured and supplied in accordance to EN 1492-1:2000, AS 1353.1-1997 or JB/T 8521-2007 Standards which stipulates colour code, labelling and how the sling is sewn together. In order to guard the webbing from unnecessary wear and tear, several coverings are available, in any length, which protects both the sling and fragile loads.
Sling eyes are automatically tapered to a narrower width ranges from 25mm to 300mm on the Single Layer Eye and Eye Web Sling. These slings are used by crane and rigging customers around the world provide for the low profile eye available, which enables sling removal easier when tight clearances are unavoidable.
The advanced manufacturing of webbing slings, photo by Shanghai Anfeng Lifting & Rigging
Benefits of polyester webbing slings
1. Acid resistance — Polyester webbing sling is resistant to bleaching agents and acids. So it can be utilized in acidic environments.
2. Colour-coded — The web slings are colour coded to identify capacity limitations.
3. Firm grip — Polyester webbing slings allow for a firm hold / grip around objects being lifted.
4. Lightweight — The web sling's lightweight making the slings easier to be carried around sites, wrap and store.
5. Low cost — Polyester slings is available at a lower cost in comparison to wire rope slings and chain.
6. Non-explosive — Polyester slings can be safely used in explosive atmospheres (e.g. mining), the material is both non-sparking and non-conductive.
7. Quick drying — As a material, polyester is quick to dry because of its hydrophobic attributes.
8. Resistance and durability — Other than acid, polyester slings are resistant to many chemicals, oil, moisture, and grease. In addition to that, polyester is resistant to UV degradation.
9. Shape retention — Polyester slings are well known for retaining its shape. This is beneficial where there is restricted space. It also reduces the risk of shrinkage and stretching.
10. Softness — Polyester webbing sling is soft. It is not prone to scratch and it does not deform surfaces it comes in contact with. What's more, it is twist / kink resistant.
11. Strength — Polyester is very strong and is capable of lifting extremely heavy loads. They can also absorb shocks, which makes it an ideal material for slings.
12. Webbing Slings can be equiped with additional protective sleeve.
Anfeng Single Layer Eye and Eye Webbing Sling technical data sheet
code |
W.L.L |
Colour |
Approximate Width |
Min.length |
Max.length |
6:1 7:1 8:1 |
|
tons |
|
mm mm mm |
m |
m |
SEE-0.5T
SEE-1T
SEE-1.5T |
0.5
1
1.5 |
purple
green
yellow |
25 30 50
50 60 65
75 90 90 |
1.1
1.2
1.3 |
100
100
100 |
SEE-2.0T
SEE-2.5T
SEE-3T |
2
2.5
3 |
gray
red
brown |
100 120 120
125 150 150
150 180 200 |
1.4
1.5
1.7 |
100
100
100 |
SEE-4T
SEE-5T |
4
5 |
blue
orange |
200 240 240
250 300 - |
2.0
2.2 |
100
100 |
Other sizes can be produced upon request |
Inspection, testing and certification
All of our webbing slings are manufactured under strict quality control process. The products will be sampled and tested according to a certain ratio and provided with tensile test cetification before delivery.
Our technical staffs make sure the products meet all safety and manufacturing requirements. Upon request, Anfeng provides customers with DNV-GL, CCS, ABS and other third-party inspection certificates.
