20mm Wire Rope Sling Assembly , Single Leg Steel Cable Lifting Slings
Basic Properties
Place of Origin:
China
Brand Name:
Anfeng / AF
Certification:
CE, ISO 9001
Model Number:
CSSWH20
Trading Properties
Minimum Order Quantity:
500 pcs
Price:
Call or Email for quote
Payment Terms:
T/T, L/C
Supply Ability:
10,000 pcs per month
Product Summary
20mm Single leg steel wire rope slings, swaged wire rope with Flemish Eye Sleeve and Thimble, steel core, equipped with Master Link Single leg wire rope sling assembly, steel core, Soft Eye and Eye Sling Product Description Our Single Leg Wire Rope Sling Assemblies (with steel core) feature 6 x 37 (a) + IWRC Construction, with 1770MPa in tensile strength. They are generally equipped with hooks or shackles to form a sling assemblies. The sling assemblies are produced comply
Product Details
Highlight:
20mm Wire Rope Sling Assembly
,0.8'' Wire Rope Sling Assembly
,Single Leg Steel Cable Lifting Slings
Brand Name:
Anfeng / AF
Standard:
EN 13411-3: 2003, EN 13411-3: 2004, GB/T 16762-2009, GB/T 14737-2009
Material:
Galvanized Steel Wire Rope With Steel Core
Safety Factor:
5:1
Strength:
1770 MPa
Length:
Customized
Wire Rope End Fittings:
Flemish Eye Sleeve And Thimble
Key Word:
Single Leg Wire Rope Sling, Wire Rope With Flemish Eye Sleeve And Thimble, Steel Core, Sling Assembly
OEM Or ODM Services:
Yes, Upon Request
Place Of Origin:
Shanghai Or Guangzhou, China
Packing:
Carton + Pallet, Wooden Box, Or Custom
Equipped With:
Standard Shackle
Product Description
20mm Single leg steel wire rope slings, swaged wire rope with Flemish Eye Sleeve and Thimble, steel core, equipped with Master Link
Single leg wire rope sling assembly, steel core, Soft Eye and Eye Sling
Product Description
Our Single Leg Wire Rope Sling Assemblies (with steel core) feature 6 x 37 (a) + IWRC Construction, with 1770MPa in tensile strength. They are generally equipped with hooks or shackles to form a sling assemblies.
The sling assemblies are produced comply with EN 13414-1: 2003, EN 13411-3: 2004, GB/T 16762-2009, GB/T 14737-2009 requirements.
You will often see equipment of this nature being swaged, which means that the end has been folded back on itself, and spliced into the rope.
An eye on its own is strong, however, a thimble can help to further strengthen this setup. A thimble eye can also be pressed with a ferrule, using many tonnes of force to provide a strong connection. The wire rope will run around the thimble, and then spliced back into itself. This creates a strong eye-shaped loop, and makes the end termination a lot stronger and a lot more permanent too.
Having thimbles at each end means that this product can be used for a range of applications. For example, it could be used as a balustrade with each end looping over a hook.

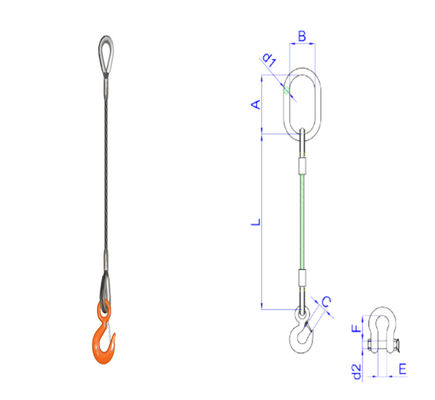

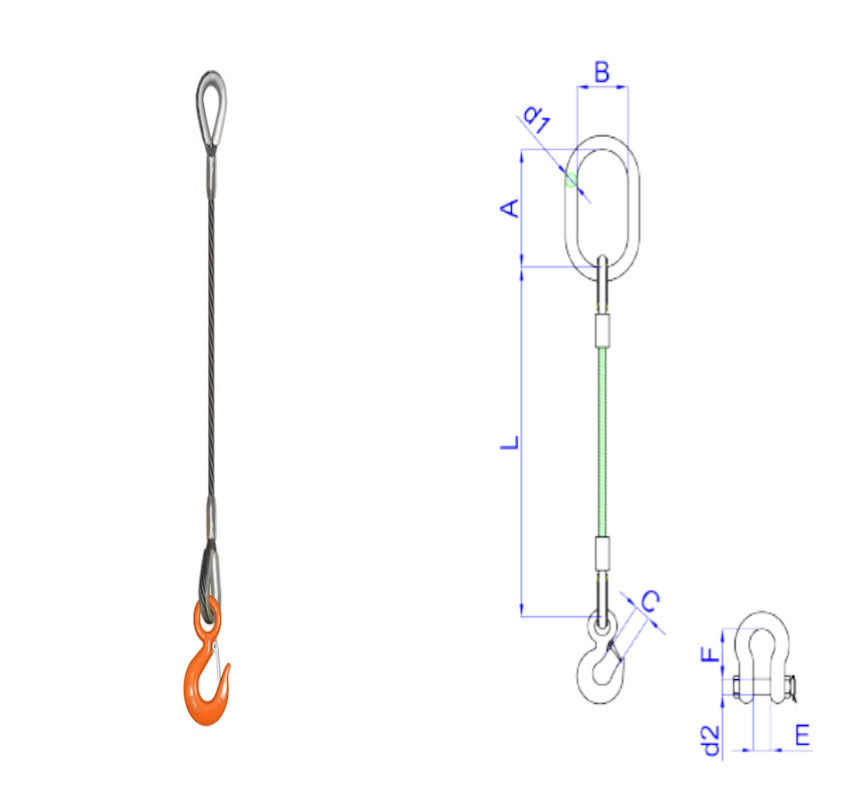

Specification
|
Product Code
|
Rope dia.
(mm) |
6x37 (a) + IWRC, 1770 MPa
WLL
(t) |
Master Link dimension
d1×A×B (mm) |
Equipped with
|
||||
|
Hook
|
Shackle
|
|||||||
| Load capacity |
Gape
C
|
Load capacity
|
dimension
d2×E×F
|
|||||
|
(t)
|
(mm)
|
(t)
|
(mm)
|
|||||
|
CSSWH11
|
CSSWS11
|
11.0
|
1.4
|
16×140×80
|
1.5
|
24.6
|
1.5
|
13×19×42
|
|
CSSWH12
|
CSSWS12
|
12.0
|
1.66
|
16×140×80
|
2.0
|
26.9
|
2.0
|
16×21×47
|
|
CSSWH13
|
CSSWS13
|
13.0
|
1.95 |
16×140×80
|
2.0
|
26.9
|
2.0
|
16×21×47
|
|
CSSWH14
|
CSSWS14
|
14.0
|
2.27
|
16×140×80
|
3.0
|
30.2
|
3.25
|
19×27×60
|
|
CSSWH15
|
CSSWS15
|
15.0
|
2.6
|
16×140×80
|
3.0
|
30.2
|
3.25
|
19×27×60
|
|
CSSWH16
|
CSSWS16
|
16.0
|
2.96 |
16×140×80
|
3.0
|
30.2
|
3.25
|
19×27×60
|
|
CSSWH18
|
CSSWS18
|
18.0
|
3.75
|
20×160×95
|
4.5
|
38.1
|
4.75
|
22×32×71
|
|
CSSWH20
|
CSSWS20
|
20.0
|
4.62
|
20×160×95
|
7.0
|
45.0
|
4.75
|
22×32×71
|
|
CSSWH22
|
CSSWS22
|
22.0
|
5.6
|
26×190×110
|
7.0
|
45.0
|
6.5
|
25×37×84
|
|
CSSWH24
|
CSSWS24
|
24.0
|
6.7
|
26×190×110
|
7.0
|
45.0
|
8.5
|
28×43×95
|
|
CSSWH26
|
CSSWS26
|
26.0
|
7.8
|
26×190×110
|
11.0
|
61.0
|
8.5
|
28×43×95
|
|
CSSWH28
|
CSSWS28
|
28.0
|
9.1
|
26×190×110
|
11.0
|
61.0
|
9.5
|
32×46×108
|
|
CSSWH30
|
CSSWS30
|
30.0
|
10.4
|
32×230×130
|
11.0
|
61.0
|
12.0
|
35×52×119
|
|
CSSWH32
|
CSSWS32
|
32.0
|
11.8
|
32×230×130
|
15.0
|
66.6
|
12.0
|
35×52×119
|
|
CSSWH34
|
CSSWS34
|
34.0
|
13.4
|
32×230×130
|
15.0
|
66.6
|
13.5
|
38×57×131
|
|
CSSWH36
|
CSSWS36
|
36.0
|
15.0
|
38×275×150
|
15.0
|
66.6
|
17.0
|
42×61×148
|
|
CSSWH38
|
CSSWS38
|
38.0
|
16.7
|
38×275×150
|
22.0
|
86.6
|
17.0
|
42×61×148
|
|
CSSWH40
|
CSSWS40
|
40.0
|
18.5
|
38×275×150
|
22.0
|
86.6
|
25.0
|
51×73×177
|
|
CSSWH42
|
CSSWS42
|
42.0
|
20.4
|
38×275×150
|
22.0
|
86.6
|
25.0
|
51×73×177
|
|
CSSWH44
|
CSSWS44
|
44.0
|
22.4
|
45×340×180
|
30.0
|
101.6
|
25.0
|
51×73×177
|
|
CSSWS46
|
CSSWS46
|
46.0
|
24.5
|
45×340×180
|
30.0
|
101.6
|
25.0
|
51×73×177
|
|
CSSWH48
|
CSSWS48
|
48.0
|
26.6
|
45×340×180
|
30.0
|
101.6
|
35.0
|
57×83×197
|
|
CSSWH50
|
CSSWS50
|
50.0
|
28.9
|
45×340×180
|
30.0
|
101.6
|
35.0
|
57×83×197
|
|
CSSWH52
|
CSSWS52
|
52.0
|
31.3
|
45×340×180
|
37.0
|
108.0
|
35.0
|
57×83×197
|
|
CSSWH54
|
CSSWS54
|
54.0
|
33.7
|
50×350×190
|
37.0
|
108.0
|
35.0
|
57×83×197
|
|
CSSWH56
|
CSSWS56
|
56.0
|
36.3
|
50×350×190
|
37.0
|
108.0
|
55.0
|
70×105×267
|
|
CSSWH58
|
CSSWS58
|
58.0
|
38.9
|
50×350×190
|
45.0
|
120.0
|
55.0
|
70×105×267
|
|
CSSWH60
|
CSSWS60
|
60.0
|
41.6
|
56×400×200
|
45.0
|
120.0
|
55.0
|
70×105×267
|
|
Note:
1. Reference standard: EN 13411-3: 2003, EN 13411-3: 2004, GB/T 16762-2009, GB/T 14737-2009.
2. Surface treatment of wire ropes can be galvanized and grease free, galvanized with grease and uncoated with grease.
3. The wire rope structure, tensile strength and working load limited could be customized according to customer's request.
4. Safety factor of the rigging is 5:1.
5. Safety factor of the Master Link and Hook is 4:1.
6. Safety factor of the shackle is 6:1.
|
||||||||
