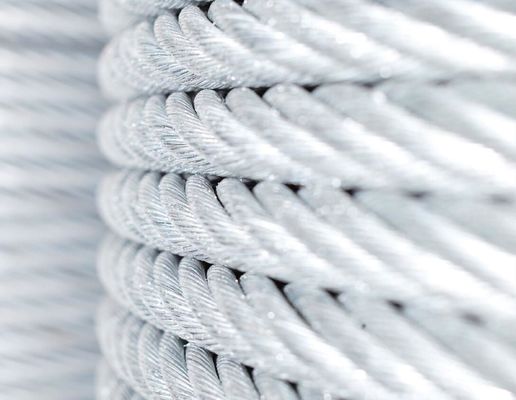

Heavy Duty 216mm 8.5 inch Endless Wire Rope Sling

Heavy Duty 216mm 8.5 inch Endless Wire Rope Sling
Heavy Duty 216mm 8.5 inch Endless Wire Rope Sling Heavy Duty 216mm 8.5 inch Endless Wire Rope Sling

Large Image :  Heavy Duty 216mm 8.5 inch Endless Wire Rope Sling

Product Details:
Place of Origin: China
Brand Name: Anfeng / AF
Certification: CE, ISO9001
Model Number: CLGH216
Payment & Shipping Terms:
Minimum Order Quantity: 500 pcs
Price: Call or Email for quote
Packaging Details: Carton + pallet, wooden box, or custom
Delivery Time: Within 45 days after order confirmation
Payment Terms: T/T, L/C
Supply Ability: 10,000 pcs per month

Heavy Duty 216mm 8.5 inch Endless Wire Rope Sling

Description
Material: Galvanized Steel Wire Rope With Steel Core, Multi-wire Strands Application: High Capacity Lifting, Heavy Duty Lift
Standard: EN 13414-3: 2003, GB/T 30587-2014 Safety Factor: 3:1
Strength: 1770 MPa Shape: Endless
Key Word: Cable Laid Grommet, Endless Wire Rope Sling, High Capacity, Multi-wire Strands Sling, For Heavy Duty Application Surface Treatment: Galvanized And Grease Free, Galvanized With Grease Or Uncoated With Grease
OEM Or ODM Services: Yes, Upon Request Packing: Carton + Pallet, Wooden Box, Or Custom
Highlight:

216mm Endless Wire Rope Sling

,

8.5'' Endless Wire Rope Sling

,

CE heavy duty steel cable


216mm Cable Laid Grommet, Endless Wire Rope Sling, high capacity, large diameter, multi-wire strands sling, for Heavy Duty Application

Grommet / Endless Cable Laid Wire Rope Sling, steel core

Product Description

Our high capacity Cable Laid Grommet resist kinks, and is flexible, easy to handle. The grommet is suitable for heavy duty operations.

High capacity Cable Laid Grommet is an endless wire rope lifting sling made from one continuous length of steel wire rope, formed to make a body composed of 6 outer ropes around a core rope, featuring 6 x 37 (a), 6 x 61 (a), 8 x 61 (a) and 8 x 61 (ab) construction, with 1770 MPa in tension strength.

The rope ends are tucked into the body forming the core. Due to its unique construction of one length of single rope and no terminations, a Cable Laid Grommet is the perfect link between hook and load. It also offers the shortest possible solution in lifting.

Main features:
- Forms a continuous loop sling
- Available in a wire rope or six strand body
- Mechanical or hand spliced connections
- Steel core for higher carrying capacities.

Specification
Heavy Duty 216mm 8.5 inch Endless Wire Rope Sling 0

Product code

Sling Dia.

(mm)

MBL

(tons)

Single-leg grommet

WLL (tons)

Two-leg grommet assembly

WLL (tons)

Four-leg grommet assembly

WLL (tons)

α=0° α≦45° 45°<α≦60° α≦45° 45°<α≦60°
CLGH66 66 317.1 63.4 88.8 63.4 133.2 95.1
CLGH72 72 377.4 75.5 105.7 75.5 158.5 113.2
CLGH78 78 442.9 88.6 124.0 88.6 186.0 132.9
CLGH84 84 513.7 102.7 143.8 102.7 215.7 154.1
CLGH90 90 589.7 117.9 165.1 117.9 247.7 176.9
CLGH96 96 670.9 134.2 187.9 134.2 281.8 201.3
CLGH102 102 757.4 151.5 212.1 151.5 318.1 227.2
CLGH108 108 849.1 169.8 237.7 169.8 356.6 254.7
CLGH120 120 1,048.3 209.7 293.5 209.7 440.3 314.5
CLGH132 132 1,268.4 253.7 355.2 253.7 532.7 380.5
CLGH144 144 1,509.5 301.9 422.7 301.9 634.0 452.9
CLGH156 156 1,771.6 354.3 496.0 354.3 744.1 531.5
CLGH168 168 2,054.6 410.9 575.3 410.9 862.9 616.4
CLGH180 180 2,358.6 471.7 660.4 471.7 990.6 707.6
CLGH192 192 2,683.6 536.7 751.4 536.7 1,127.1 805.1
CLGH204 204 3,029.5 605.9 848.3 605.9 1,272.4 908.9
CLGH210 210 3,210.3 642.1 898.9 642.1 1,348.3 963.1
CLGH216 216 3,301.0 660.2 924.3 660.2 1,386.4 990.3
CLGH228 228 3,678.0 735.6 1,029.8 735.6 1,544.7 1,103.4
CLGH240 240 4,075.3 815.1 1,141.1 815.1 1,711.6 1,222.6
CLGH252 252 4,493.0 898.6 1,258.0 898.6 1,887.1 1,347.9
CLGH264 264 4,931.1 986.2 1,380.7 986.2 2,071.1 1,479.3
CLGH276 276 5,389.6 1,077.9 1,509.1 1,077.9 2,263.6 1,616.9
CLGH288 288 5,868.4 1,173.7 1,643.2 1,173.7 2,464.7 1,760.5
CLGH300 300 6,367.7 1,273.5 1,782.9 1,273.5 2,674.4 1,910.3
CLGH312 312 6,887.3 1,377.5 1,928.4 1,377.5 2,892.7 2,066.2
CLGH324 324 7,427.2 1,485.4 2,079.6 1,485.4 3,119.4 2,228.2
CLGH330 330 7,482.2 1,496.4 2,095.0 1,496.4 3,142.5 2,244.7
CLGH336 336 7,756.7 1,551.3 2,171.9 1,551.3 3,257.8 2,327.0
CLGH348 348 8,320.7 1,664.1 2,329.8 1,664.1 3,494.7 2,496.2
CLGH360 360 8,904.4 1,780.9 2,493.2 1,780.9 3,739.9 2,671.3
CLGH372 372 9,508.0 1,901.6 2,662.2 1,901.6 3,993.3 2,852.4
CLGH384 384 10,131.3 2,026.3 2,836.8 2,026.3 4,255.1 3,039.4
CLGH396 396 10,774.4 2,154.9 3,016.8 2,154.9 4,525.2 3,232.3
CLGH408 408 11,437.2 2,287.4 3,202.4 2,287.4 4,803.6 3,431.2
CLGH420 420 12,119.9 2,424.0 3,393.6 2,424.0 5,090.4 3,636.0
CLGH432 432 12,822.4 2,564.5 3,590.3 2,564.5 5,385.4 3,846.7
CLGH444 444 13,544.6 2,708.9 3,792.5 2,708.9 5,688.7 4,063.4
CLGH456 456 14,286.7 2,857.3 4,000.3 2,857.3 6,000.4 4,286.0
CLGH468 468 15,048.5 3,009.7 4,213.6 3,009.7 6,320.4 4,514.5
CLGH480 480 15,830.1 3,166.0 4,432.4 3,166.0 6,648.6 4,749.0
CLGH492 492 16,631.5 3,326.3 4,656.8 3,326.3 6,985.2 4,989.4
CLGH504 504 17,452.7 3,490.5 4,886.8 3,490.5 7,330.1 5,235.8
CLGH516 516 18,293.7 3,658.7 5,122.2 3,658.7 7,683.3 5,488.1
CLGH528 528 19,154.4 3,830.9 5,363.2 3,830.9 8,044.9 5,746.3
CLGH540 540 20,035.0 4,007.0 5,609.8 4,007.0 8,414.7 6,010.5
CLGH552 552 20,935.3 4,187.1 5,861.9 4,187.1 8,792.8 6,280.6
CLGH564 564 21,855.4 4,371.1 6,119.5 4,371.1 9,179.3 6,556.6
CLGH576 576 22,795.3 4,559.1 6,382.7 4,559.1 9,574.0 6,838.6
CLGH588 588 23,755.0 4,751.0 6,651.4 4,751.0 9,977.1 7,126.5
CLGH600 600 24,734.5 4,946.9 6,925.7 4,946.9 10,388.5 7,420.4
CLGH612 612 25,733.8 5,146.8 7,205.5 5,146.8 10,808.2 7,720.1
CLGH624 624 26,752.9 5,350.6 7,490.8 5,350.6 11,236.2 8,025.9
CLGH636 636 27,791.7 5,558.3 7,781.7 5,558.3 11,672.5 8,337.5
CLGH648 648 28,850.4 5,770.1 8,078.1 5,770.1 12,117.2 8,655.1
CLGH660 660 29,928.8 5,985.8 8,380.1 5,985.8 12,570.1 8,978.6
CLGH672 672 31,027.0 6,205.4 8,687.6 6,205.4 13,031.3 9,308.1
CLGH684 684 32,145.0 6,429.0 9,000.6 6,429.0 13,500.9 9,643.5
CLGH696 696 33,282.8 6,656.6 9,319.2 6,656.6 13,978.8 9,984.8

Note:
1. Reference standard: EN 13414-3: 2003, GB/T 30587-2014.
2. The above metioned wire ropes feature 6 x 37 (a), 6 x 61 (a), 8 x 61 (a) and 8 x 61 (ab) construction, with 1770 MPa in tension strength.
3. Surface treatment of wire ropes can be galvanized and grease free, galvanized with grease and uncoated with grease.
4. The wire rope structure, tensile strength and working load limited could be customized according to customer's request.
5. Minimum Breaking Load is 5 times of Working Load Limited.
6. Safety factor is 5:1 for the above mention wire ropes with rope diameter of below 60mm, and rope diameter above 150mm with a safety factor of 3:1.
7. Higher load capacity than the general usage Cable Laid Grommet, while with the same rope diameter.
Heavy Duty 216mm 8.5 inch Endless Wire Rope Sling 1

About Anfeng Lifting & Rigging

Based in Shanghai Free Trade Zone, Shanghai Anfeng Lifting & Rigging Ltd. is an experienced technical and sales company specialized in supplying webbing slings, round slings, wire rope and slings, chains, rigging accessories and more.

Anfeng supplies steel wire ropes, wire rope slings, lifting chains and accessories, webbing slings, round slings, fall protection harness, typhoon resistant series products, lashing, offshore mooring lines, chain hoists, lever hoists, electric hoists, shackles up to 1500t, and lifting points.

We have earned a reputation globally as a provider of high quality products, supported by our trained staff and high standard of QA/QC procedure and inspections. Our technical staffs make sure the products meet all safety and manufacturing requirements. Upon request, Anfeng provides customers with DNV-GL, CCS, ABS and other third-party inspection certificates.
