ASME B30.26 Shackle Bow Type

ASME B30.26 Shackle Bow Type
ASME B30.26 Shackle Bow Type ASME B30.26 Shackle Bow Type

Large Image :  ASME B30.26 Shackle Bow Type

Product Details:
Place of Origin: China
Brand Name: Anfeng / AF
Certification: CE, GS, ISO
Model Number: KWB-300
Payment & Shipping Terms:
Minimum Order Quantity: 500 pcs
Price: Call or Email for quote
Packaging Details: Carton + pallet, wooden box, or custom
Delivery Time: Within 45 days after order confirmation
Payment Terms: T/T, L/C
Supply Ability: 10,000 pcs per month

ASME B30.26 Shackle Bow Type

Description
Key Word: Wide Body Bow Shackle With Safety Bolt, High Load Capacity, With Increased Bow Radius To Improve Life Of Sling Material: Cast Alloy Steel, Forged Alloy Steel, Quenched And Tempered
Finish: Shackle Bow And Pin Painted Silver Safety Factor: 5:1
WLL: 300 Tonne Standard: ASME B30.26-2004
Custom Services: OEM Or ODM Packaging: Carton + Pallet, Wooden Box, Or Custom
Type Of Shackle: Bow Shackle Bolt Type: Safety Bolt With Nut And Cotter Pin
High Light:

ASME B30.26 Shackle Bow Type

,

300T Shackle Bow Type

,

ISO shackle bolt

  •

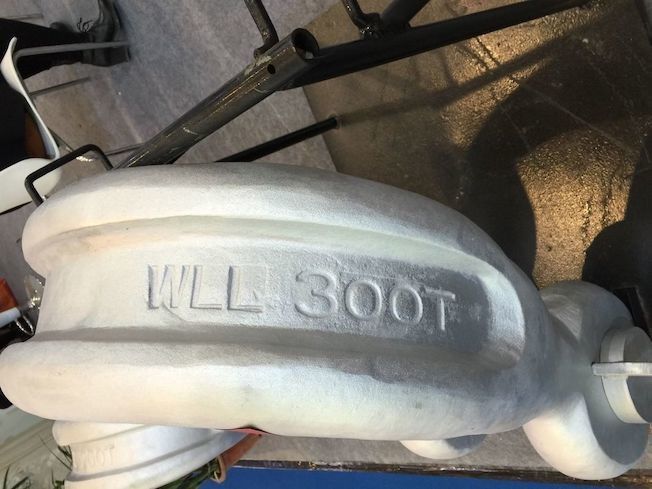

  • 300 tonne Wide Body Bow Shackle with Safety Bolt, DNV type approval, high load capacity, with increased bow radius to improve life of sling
  • Wide Body Shackle, high load capacity bow shackle with safety bolt
  •
Product Overview
- Increases usable sling strength minimum of 15% and greatly improves life of wire rope slings.
- Can be used to connect high strength synthetic web slings, high strength synthetic round slings or wire rope slings.
- All sizes quenched and tempered for maximum strength.
- Forged alloy steel from 7 through 300 metric tons.
- Cast alloy steel from 400 through 1550 metric tons.
- Sizes 300 metric tons and smaller are proof tested to 2 times the working load limit.
- Sizes 400 metric tons and larger are tested to 1.33 times working load limit.
- Sizes 300 metric tons and smaller are proof load is 2 times the working load limit.limit.
- Sizes 400 metric tons and larger are proof load is 4.5 times the working load limit.
- Shackles bows are all hot dip galvanized , screws and the bolts are painted yellow or customized request.
- Meets or exceeds all requirements of ASME B30.26-2004,RR-C-271D.
- Type approval certification in accordance with DNV for certification of lifting appliances available. Certificates available when requested at time of order and may include additional charges.
ASME B30.26 Shackle Bow Type 0
Wide Body Shackle is a bow shackle with improved bow radius that greatly improves life of wire rope slings. The shackle is high load capacity bow shackle with safety bolt, nut and cotter pin. They are excellent choice for heavy lifting projects due to the shape of the shackle crown. Compared to our standard bow shackles, Wide Body Shackles have an increased bow radius to improve the sling resistance to wear and tear and enable you to use a lighter wire rope to lift the same heavy load. Galvanization of the Wide Body Shackle ensures long-term durability. They are available in a range with a working load limit from 7 up to 1550 tons. Can be used to connect wire rope sling, high strength synthetic webbing sling or round slings.

Specification
ASME B30.26 Shackle Bow Type 1
  Working
load
(t)
Size(mm)
Weight

(kg)
Code
A B C D E G H J K P R
  +/-6.35 +/-0.5
KWB-7 7 263 31.8 17.5 22.4 46.2 31.8 90.4 40.6 31.8 104 149 1.8
KWB-12.5 12.5 137 42.9 23.4 28.7 60.5 34.8 118.0 54.1 41.4 140.0 194.0 4.5
KWB-18 18 170.0 51.6 29.5 35.1 68.3 38.1 148.0 63.5 50.8 172.0 238.0 6.8
KWB-30 30 195 60.2 35.1 41.4 88.9 44.5 176.0 79.5 63.5 216.0 289.0 11.3
KWB-40 40 236.0 73.2 42.9 50.8 102.0 58.7 205.0 95.3 76.2 270.0 346.0 15.9
KWB-55 55 263 82.6 50.8 57.2 118.0 66.8 238.0 114.0 88.9 311.0 397.0 32.2
KWB-75 75 365.0 105.0 53.8 69.9 127.0 63.5 293.0 121.0 92.5 312.0 468.0 45.0
KWB-125 125 419 130.0 65.0 80.0 145.0 80.0 365.0 150.0 110.0 380.0 575.0 73.0
KWB-200 200 525.0 150.0 85.1 105.0 185.0 110.0 480.0 205.0 137.0 495.0 757.0 227.0
KWB-300 300 615 187.0 102.0 133.0 235.0 137.0 600.0 264.0 160.0 594.0 946.0 368.0
KWB-400 400 769.0 220.0 131.0 160.0 300.0 160.0 575.0 320.0 185.0 690.0 985.0 472.0
KWB-500 500 847 250.0 146.0 180.0 340.0 170.0 630.0 340.0 225.0 790.0 1085.0 625.0
KWB-600 600 915.0 275.0 158.0 200.0 384.0 185.0 700.0 370.0 247.0 865.0 1200.0 831.0
KWB-700 700 988 300.0 167.0 215.0 376.0 200.0 735.0 400.0 270.0 940.0 1275.0 1109.0
KWB-800 800 1058.0 325.0 185.0 230.0 420.0 210.0 750.0 420.0 277.0 975.0 1323.0 1368.0
KWB-900 900 1111 350.0 198.0 250.0 430.0 220.0 757.0 440.0 293.0 1025.0 1373.0 1559.0
KWB-1000 1000 1168.0 380.0 212.0 270.0 450.0 230.0 760.0 460.0 308.0 1075.0 1405.0 1824.0
KWB-1250 1250 1266 430.0 232.0 300.0 533.0 265.0 930.0 530.0 323.0 1175.0 1660.0 2588.0
KWB-1550 1550 1394.0 465.0 269.0 320.0 605.0 404.0 1075.0 580.0 338.0 1255.0 1865.0 3650.0

ASME B30.26 Shackle Bow Type 2ASME B30.26 Shackle Bow Type 3
