Product Details:
|
Safety Factor: | 5:1 | Manufacturer: | Anfeng Lifting & Rigging Ltd. |
---|---|---|---|
End Fitting Type: | Open Spelter Socket With Cotter Pin | Tension Strength: | 1770 MPa |
Material: | High Tensile, Quenched And Tempered Cast Steel | Wire Rope Construction: | 6 X 19 + IWRC, 6 X 37 (a) + IWRC, 6 X 61 (a) + IWRC And 8 X 61 (a) + IWRC |
Product Name: | Galvanized 8mm Wire Rope End Stop Open Spelter Sockets With Cotter Pin SOA-08 | Certifications: | DNV-GL, CCS, ABS And Other Third-party Inspection Certificates Available Upon Request |
Highlight: | DNV Sling Accessory,Sling Hardware |
Product Overview

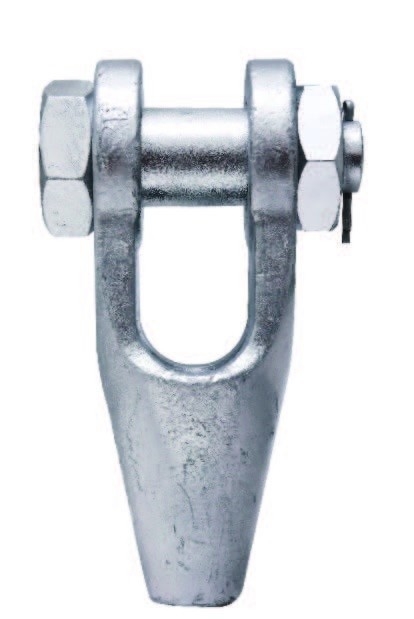

The Anfeng SOA-08 Sling Hardware and Accessory is a premium-grade lifting solution designed for heavy-duty applications across industries like construction, offshore, and logistics. Featuring an open spelter socket with cotter pin for secure attachment, this product delivers exceptional durability with a 1770 MPa tension strength and 5:1 safety factor. Its unique chemical composition ensures superior mechanical performance, making it ideal for wire rope slings, chains, webbing slings, and typhoon-resistant mooring systems.
Unmatched Strength & Safety
Material: High-tensile, quenched, and tempered cast steel.
Safety Factor: 5:1, exceeding industry standards for critical lifts.
Certifications: Compliant with EN 13411-4:2002 and RR-S-550D (Type A), backed by CE, ISO9001, and DNV certifications.
Corrosion-Resistant & Long-Lasting
Galvanized finish prevents rust, ensuring reliability in harsh environments (e.g., offshore, marine).
Customizable Load Capacity
Working Load Limit (WLL): Adjustable per customer requirements.
Rope Diameter: 8mm, compatible with 6x19 + IWRC, 6x37 + IWRC, and other wire rope constructions.
Versatile Applications
Suitable for steel wire ropes, lifting chains, round slings, fall protection harnesses, and offshore lashing.
Integrates with chain hoists, lever hoists, and shackles (up to 1500t).
Parameter | Details |
---|---|
Dimensions (mm) | A:57.2, C:57.0, D:31.8, F:50.8, etc. |
End Fitting | Open spelter socket + cotter pin |
Material | High-tensile cast steel |
Rope Diameter | 8mm |
Galvanization | Yes (for corrosion resistance) |
MOQ | 500 pcs |
Delivery Time | 45 days after confirmation |
Heavy-Duty Performance: Engineered for extreme loads with a 1770 MPa tensile strength.
Global Compliance: Meets EU (CE) and maritime (DNV) safety standards.
Fast Shipping: Bulk orders shipped within 45 days, packed in cartons/pallets or custom packaging.
OEM Support: Custom WLL, dimensions, and packaging available.
Applications:
✔ Construction rigging
✔ Shipboard mooring & lashing
✔ Industrial hoisting (electric/lever hoists)
✔ Fall protection systems
