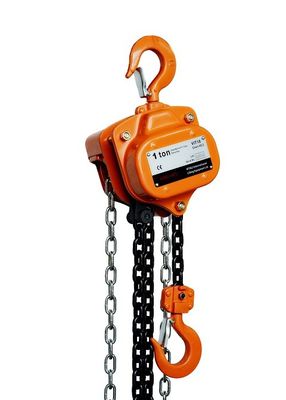

1 tonne Chain Block VIT-II
Heavy duty type for professional & industrial users
Chain Block type VIT-II is heavy duty type manual chain block for professional and industrial users.
The hoists are manufactured by VITALI-INTL Lifting Equipment Ltd, based on European and American standards.
The whole series of Chain Block type VIT-II contains 0.5 tonne, 1 tonne, 1.5 tonne, 2 tonne, 3 tonne, 5 tonne, 10 tonne, 20 tonne and 30 tonne in load capacity. They are mainly exported to American and European markets.
Standard Features
1. Meets all pertinent world standards
2. Lightweight high strength grade 100 alloy steel load chain
3. Compact design for limited headroom applications
4. High strength steel frame and gear case built to be durable for the rugged needs of construction and maintenance rigging
5. Heat-treated spur gear efficiently designed to provide smooth load handling and low hand chain pull
6. Reinforced double pawl brake system and larger dia. pawl springs ensure reliable brake
7. Open frame design for self-cleaning, quick load sheave inspection and easy hoist maintenance
8. Caged roller bearings on load sprocket
9. Zinc plated load chain
10. Cast safety latches
11. Cr plated side plate assemblies
12. Thrust bearings in bottom hook assembly
VITALI-INTL Chain Block VIT-II Specification
| Capacity |
(tonnes) |
0.5 |
1 |
1.5 |
2 |
2 |
3 |
3 |
5 |
10 |
20 |
30 |
| Product No. |
|
VIT05 |
VIT10 |
VIT15 |
VIT20V |
VIT20 |
VIT30B |
VIT30 |
VIT50 |
VIT100 |
VIT200 |
VIT300 |
| No.of Falls |
|
1 |
1 |
1 |
1 |
1 |
1 |
2 |
2 |
4 |
8 |
12 |
| Load Chain |
(mm) |
5x15 |
6.3x19 |
7.1x21 |
7.1x21 |
8x24 |
9x27 |
7.1x21 |
9x27 |
9x27 |
9x27 |
9x27 |
| Load Chain Grade |
|
100 |
100 |
100 |
100 |
100 |
100 |
100 |
100 |
100 |
100 |
100 |
| Pull to Rated Load 1 |
(N) |
296 |
415 |
415 |
525 |
434 |
449 |
406 |
415 |
410 |
410x2 |
410x2 |
| Pull to Rated Load 2 |
(N) |
237 |
366 |
366 |
519 |
395 |
410 |
357 |
380 |
410 |
410x2 |
410x2 |
| Proof Load |
(tonnes) |
0.75 |
1.5 |
2.25 |
3.0 |
3.0 |
4.5 |
4.5 |
7.5 |
15.0 |
25.0 |
37.5 |
| Hand Chain |
(mm) |
5x22.2x18 / 5.5x23.6x19 |
| Standard Lift |
(m) |
3 |
3 |
3 |
3 |
3 |
3 |
3 |
3 |
5 |
5 |
5 |
| Net Weight |
(kg) |
9 |
12.2 |
14.5 |
15.5 |
21 |
34 |
22 |
40 |
89.4 |
214.7 |
278 |
| Gross Weight |
(kg) |
9.4 |
12.7 |
15 |
16 |
22.2 |
34.5 |
22.7 |
41.5 |
96.9 |
225.7 |
293 |
| Extra weight per meter |
(kg) |
1.42 |
1.73 |
1.97 |
1.97 |
2.58 |
2.76 |
3.07 |
4.71 |
8.23 |
16.46 |
23.5 |
| Dimensions |
a |
(mm) |
127 |
147 |
147 |
147 |
179 |
182 |
147 |
179 |
179 |
207 |
350 |
| b |
(mm) |
144 |
157 |
174 |
174 |
204 |
263 |
206 |
263 |
367 |
873 |
694 |
| c |
(mm) |
285 |
315 |
340 |
355 |
380 |
550 |
475 |
600 |
740 |
870 |
1,300 |
| f |
(mm) |
27 |
33 |
33.5 |
37 |
37 |
43.5 |
43.5 |
51 |
64 |
82 |
82 |
| g |
(mm) |
35 |
45 |
47 |
52 |
52 |
62.5 |
62.5 |
78 |
- |
- |
- |
1: without Caged Roller Bearings on Load Sprocket (Standard Feature)
2: with Caged Roller Bearings on Load Sprocket (Optional Feature)
