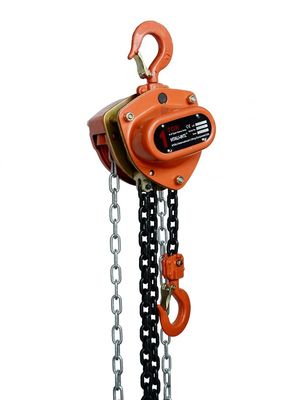

1 -20 Ton Chain Pulley Blocks CK type with hand chain
Basic Properties
Place of Origin:
China
Brand Name:
VITALI-INTL
Certification:
CE, GS, ISO 9001
Model Number:
CK1-CK1.5-CK2-CK3-CK5-CK10-CK20
Trading Properties
Minimum Order Quantity:
100 pcs
Price:
Call or Email for quote
Payment Terms:
T/T, L/C
Supply Ability:
10,000 pcs per month
Product Summary
1tonne Chain Block K-II top-of-the-line chain block Product Description Chain Block type K-II is top-of-the-line chain block. The hoists are manufactured by VITALI-INTL Lifting Equipment Ltd, based on European and American standards. The whole series of Chain Block type K-II (top-of-the-line chain block) contains 0.25 tonne, 0.5 tonne, 1 tonne, 1.5 tonne, 2 tonne, 3 tonne, 3.2 tonne, 5 tonne, 7.5 tonne, 10 tonne, 15 tonne, 20 tonne, 30 tonne and 50 tonne in load capacity.
Product Details
Highlight:
1T Chain Pulley Blocks
,1000KG Chain Pulley Blocks
,g100 1 tonne chain block
Brand Name:
VITALI-INTL
Material:
Alloy Steel, Grade 100 Alloy Steel Chain, High Strength Hook
Key Word:
Manual Chain Hoist
Load Capacity:
1 Tonne--20tonne
Custom Service:
OEM, ODM
Packaging:
Carton + Pallet, Wooden Box, Or Custom
Usage:
Lifting
Product Description
1tonne Chain Block K-II
top-of-the-line chain block
Chain Block type K-II is top-of-the-line chain block.
The hoists are manufactured by VITALI-INTL Lifting Equipment Ltd, based on European and American standards.
The whole series of Chain Block type K-II (top-of-the-line chain block) contains 0.25 tonne, 0.5 tonne, 1 tonne, 1.5 tonne, 2 tonne, 3 tonne, 3.2 tonne, 5 tonne, 7.5 tonne, 10 tonne, 15 tonne, 20 tonne, 30 tonne and 50 tonne in load capacity. They are mainly exported to American and European markets.
Standard Features
1. Seal type caged ball bearings #21 & #21A on load sprocket
2. Seal type caged ball bearings #21B & caged roller bearings #31B on the pinion shaft (minimize manual effort thanks to efficient drive train)
3. Superior design of top hook holders for double / several columns of load chains
4. Experience exceptional durability thanks to all-steel construction featuring rugged gear case enclosure and handwheel cover
5. Enjoy increased lifting height thanks to low headroom
6. Grade 100 heat-treated galv. alloy chain abrasion and wear while minimizing chain weight
7. Reinforce double pawl brake system and larger dia. pawl springs ensure reliable brake
8. Overload protection system
9. Zinc plated load chain
10. Patent fused brake disc
11. Thrust bearings in bottom hook assembly
12. Easy removable top hook
VITALI-INTL Chain Block K-II Specification
| Capacity | (tonnes) | 0.25 | 0.5 | 1 | 1.5 | 2 | 3 | 3.2 | 5 | 7.5 | 10 | 10 | 15 | 20 | 30 | 50 | |
| Product No. | K025 | K050 | K100 | K150 | K200 | K300 |
K320 |
K500 | K750 | K1000A | K1000 | K1500 | K2000 | K3000 | K5000 | ||
| No.of Falls | 1 | 1 | 1 | 1 | 1 | 2 | 1 | 2 | 3 | 3 | 4 | 6 | 8 | 12 | 20 | ||
| Load Chain | (mm) | 4x12 | 5x15 | 6.3x19 | 7.1x21 | 8x24 | 7.1x21 | 10x28 | 9x27 | 9x27 | 10x28 | 9x27 | 9x27 | 9x27 | 10x28 | 10x28 | |
| Load Chain Grade | 100 | 100 | 100 | 100 | 100 | 100 | 100 | 100 | 100 | 100 | 100 | 100 | 100 | 100 | 100 | ||
| Pull to rated load | (N) | 220 | 219 | 308 | 329 | 375 | 341 | 375 | 335 | 343 | 398 | 353 | 363 | 353x2 | 345x2 | 345x2 | |
| Proof load | (tonnes) | 0.375 | 0.75 | 1.5 | 2.25 | 3.0 | 4.5 | 4.8 | 7.5 | 11.25 | 15 | 15 | 22.5 | 25.0 | 37.5 | 62.5 | |
| Hand chain | (mm) | 5x25x18 | |||||||||||||||
| Standard Lift | (m) | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 5 | 5 | 5 | 5 | 5 | 5 | 8 | |
| Net weight | (kg) | 3.9 | 10.8 | 12.4 | 15.6 | 20 | 24 | 27.4 | 41 | 72.4 | 85.2 | 94.9 | 153 | 205 | 284 | 702 | |
| Gross weight | (kg) | 4.3 | 11.3 | 12.9 | 16.4 | 21 | 24.8 | 28.9 | 42.5 | 75.4 | 93.2 | 105 | 166 | 219 | 301 | 816 | |
| Extra weight per meter | (kg) | 0.76 | 1.5 | 1.8 | 2.1 | 2.3 | 3.2 | 3.2 | 4.4 | 6.2 | 7.6 | 7.9 | 11.4 | 15.8 | 29.3 | 46 | |

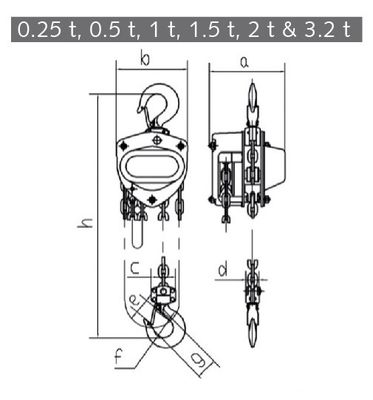

| Dimensions | a | (mm) | 96 | 130.5 | 161.5 | 170 | 183.5 | 170 | 190.5 | 192 | 192 | 190.5 | 192 | 220 | 230 | 360 | 585 |
| b | (mm) | 109 | 139.5 | 161 | 182 | 202.5 | 235 | 235 | 282 | 373 | 356 | 360.5 | 492 | 655 | 680 | 832 | |
| c | (mm) | 29.5 | 43 | 51 | 64 | 64 | 106 | 68.5 | 133 | 120 | 120 | 263 | 110 | 286 | 306 | 482 | |
| d | (mm) | 21 | 25 | 30 | 34 | 34 | 53 | 38.6 | 64 | 70 | 70 | 95 | 170 | 123 | 180 | 235 | |
| e | (mm) | 27 | 27 | 33 | 33.5 | 37 | 43.5 | 43 | 51 | 64 | 64 | 64 | 80 | 82 | 82 | 133 | |
| f | (mm) | 32 | 32 | 40 | 42 | 46 | 52 | 49.5 | 60 | 85 | 85 | 85 | 100 | 110 | 110 | 170 | |
| g | (mm) | 35.5 | 35 | 45 | 47 | 52 | 62.5 | 62 | 79 | - | - | - | - | - | - | - | |
| h | (mm) | 250 | 285 | 295 | 350 | 375 | 510 | 485 | 600 | 740 | 760 | 760 | 1,000 | 1,150 | 1,250 | 1,700 | |
About VITALI-INTL Lifting Equipment Ltd
VITALI-INTL Lifting Equipment Ltd, is one of the most advanced manual hoist factories in Asia. The company has registered the trademark with "VITALI-INTL" in Mainland China, Hong Kong China and some overseas countries.
The company's philosophy of management and quality control are based on European and American standards.Their high quality manual hoists are mainly exported to American and European markets.
The heat treatment and load chain production are the most critical production processes of the company. Additionally, they are equipped with advance scientific testing instruments, metallographic microscope, measuring projector, salt spray tester, endurance test machine and destruction test machine up to 100 tonnes.
Anfeng Lifting & Rigging is authorized distributor for all the products made by VITALI-INTL Lifting Equipment.
About Anfeng Lifting & Rigging
Based in Shanghai Free Trade Zone, Shanghai Anfeng Lifting & Rigging Ltd. is an experienced technical and sales company specialized in supplying webbing slings, round slings, wire rope and slings, chains, rigging accessories and more.
Anfeng supplies steel wire ropes, wire rope slings, lifting chains and accessories, webbing slings, round slings, fall protection harness, typhoon resistant series products, lashing, offshore mooring lines, chain hoists, lever hoists, electric hoists, shackles up to 1500t, and lifting points.
With 20 years of experience in lifting and rigging industry, Anfeng not only provides customers with high-quality lifting and rigging products, but also provides complete lifting solutions according to different projects, such as technical consultation, solution design, product planning, onsite assistance and after-sales support.
If you want to find out more about our products, be up to date with our latest development, please contact us or visit us in Shanghai!
