EN 573-3 Wire Rope End Stop
Basic Properties
Place of Origin:
EU
Brand Name:
TALURIT®
Model Number:
T
Trading Properties
Minimum Order Quantity:
100 pcs
Price:
Call or Email for quote
Payment Terms:
T/T, L/C
Supply Ability:
10,000 pcs per month
Product Summary
TALURIT® T / TS Aluminium Turnback Ferrule Product Description The ORIGINAL in mechanical splicing! The T aluminium turnback ferrule system is easy and reliable to use. It is quick, safe and has proved itself to be totally reliable. It is far more efficient than all other swaging methods on the market. Art. No: T 01 – T 152 The TALURIT T-ferrule is the original in mechanical splicing and has laid the grounds for the European standard. Nowadays, the T-ferrule correspond to the
Product Details
Highlight:
EN 573-3 Wire Rope End Stop
,EN 13411-3 Wire Rope End Stop
,Aluminium alloy rope wire fitting
Product Name:
TALURIT® T / TS Aluminium Turnback Ferrule
Application:
Can Be Used For Fibre Core, Single Layer Wire Ropes, Steel Core Single Layer Wire Ropes, Rotation Resistant Wire Ropes And Some Spiral Strand Ropes
Material:
Aluminium Alloy
Brand Name:
TALURIT®
Standard:
EN 13411-3, EN 573-3
Packaging:
Carton + Pallet, Wooden Box, Or Custom
Product Description

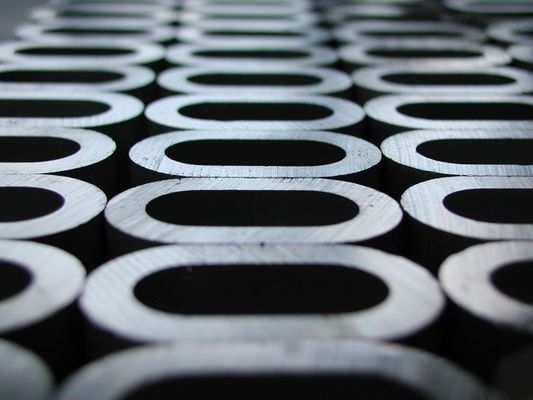

TALURIT® T / TS Aluminium Turnback Ferrule
Product Description
The ORIGINAL in mechanical splicing!
The T aluminium turnback ferrule system is easy and reliable to use. It is quick, safe and has proved itself to be totally reliable. It is far more efficient than all other swaging methods on the market.
Art. No: T 01 – T 152
The TALURIT T-ferrule is the original in mechanical splicing and has laid the grounds for the European standard.
Nowadays, the T-ferrule correspond to the European standard (FSET) for turnback ferrule or ferrule secured eye termination. The ferrule is according to EN 13411-3 standard and are produced from seamfree extrusions which are extruded seamless over mandrel and the aluminium alloy is AW-5051A according to EN 573-3.
The T-ferrule is for usage on wire ropes with a maximum tensile grade up to 1960 while the TS (shorter version) is for tensile grade up to 1770.
For applications above 2160, T-LOC must be used together with the T-ferrule.
For applications above 2160, T-LOC must be used together with the T-ferrule.
Applications
The T aluminium turnback ferrules are the most commonly used ferrules in the market, they have a vast variety of applications especially in the lifting gear industry. The T ferrule are thoroughly specified and very well defined for many different wire rope applications. Four different cases are tested and verified according to the standard, EN 13411-3. The ferrules can be used for fibre core, single layer wire ropes, steel core single layer wire ropes, rotation resistant wire ropes and some spiral strand ropes.
The T aluminium turnback ferrules are the most commonly used ferrules in the market, they have a vast variety of applications especially in the lifting gear industry. The T ferrule are thoroughly specified and very well defined for many different wire rope applications. Four different cases are tested and verified according to the standard, EN 13411-3. The ferrules can be used for fibre core, single layer wire ropes, steel core single layer wire ropes, rotation resistant wire ropes and some spiral strand ropes.
To be noted
The T aluminium turnback ferrule system is easy to use. It is quick, safe and has proved itself to be totally reliable. It is also more efficient than most other swaging methods on the market and has been tested and verified according to type testing requirements.
The T aluminium turnback ferrule system is easy to use. It is quick, safe and has proved itself to be totally reliable. It is also more efficient than most other swaging methods on the market and has been tested and verified according to type testing requirements.
Specification
| Ferrule size number | Internal size | Nominal Deviation of average wall thickness from nominal thickness | Tolerable wall thickness difference | Length |
Nominal weigth of 1000 pieces |
|||||
| a | tolerance | b | tolerance | s | s-s | u | l | tolerance | (kg) | |
| 2.5 | 2.7 | +0.2 0 |
5.4 |
+0.2 0 |
1.05 | ± 0.04 | 0.09 | 9 |
+0.2 -0.5 |
0.499 |
| 3 | 3.3 | 6.6 | 1.25 | ± 0.04 | 0.12 | 11 | 0.843 | |||
| 3.5 | 3.8 | 7.6 | 1.5 | ± 0.05 | 0.13 | 13 | 1.32 | |||
| 4 | 4.4 | +0.2 0 |
8.8 |
+0.2 0 |
1.7 | ± 0.05 | 0.15 | 14 |
+0.2 -0.5 |
1.81 |
| 4.5 | 4.9 | 9.8 | 1.9 | ± 0.06 | 0.17 | 16 | 2.61 | |||
| 5 | 5.5 | 11.0 | 2.1 | ± 0.06 | 0.19 | 18 | 3.57 | |||
| 6 | 6.6 | ± 0.15 | 13.2 | ± 0.15 | 2.5 | ± 0.08 | 0.22 | 21 |
+0.2 -0.5 |
5.86 |
| 6.5 | 7.2 | 14.4 | 2.7 | ± 0.08 | 0.24 | 23 | 7.55 | |||
| 7 | 7.8 | 15.6 | 2.9 | ± 0.09 | 0.26 | 25 | 9.53 | |||
| 8 | 8.8 | ± 0.2 | 17.6 | ± 0.2 | 3.3 | ± 0.10 | 0.29 | 28 |
+0.5 -1 |
13.7 |
| 9 | 9.9 | 19.8 | 3.7 | ± 0.11 | 0.33 | 32 | 19.8 | |||
| 10 | 10.9 | 21.8 | 4.1 | ± 0.12 | 0.37 | 35 | 26.4 | |||
| 11 | 12.1 | ± 0.3 | 24.2 | ± 0.3 | 4.5 | ± 0.13 | 0.41 | 39 |
+0.5 -1 |
35.8 |
| 12 | 13.2 | 26.4 | 4.9 | ± 0.15 | 0.44 | 42 | 45.8 | |||
| 13 | 14.2 | 28.4 | 5.4 | ± 0.16 | 0.48 | 46 | 59.7 | |||
| 14 | 15.3 | ± 0.3 | 30.6 | ± 0.3 | 5.8 | ± 0.17 | 0.52 | 49 |
+0.5 -1 |
73.5 |
| 16 | 17.5 | 35 | 6.7 | ± 0.20 | 0.57 | 56 | 111 | |||
| 18 | 19.6 | 39.2 | 7.6 | ± 0.23 | 0.61 | 63 | 159 | |||
| 20 | 21.7 | ± 0.3 | 43.4 | ± 0.3 | 8.4 | ± 0.25 | 0.64 | 70 |
+0.7 -1.5 |
217 |
| 22 | 24.3 | ± 0.4 | 48.6 | ± 0.4 | 9.2 | ± 0.28 | 0.67 | 77 | 292 | |
| 24 | 26.4 | 52.8 | 10 | ± 0.30 | 0.70 | 84 | 376 | |||
| 26 | 28.5 | ± 0.4 | 57 | ± 0.4 | 10.9 | ± 0.32 | 0.74 | 91 |
+0.7 -1.5 |
481 |
| 28 | 31 | 62 | 11.7 | ± 0.33 | 0.77 | 98 | 603 | |||
| 30 | 33.1 | 66.2 | 12.5 | ± 0.35 | 0.82 | 105 | 739 | |||
| 32 | 35.2 | ± 0.4 | 70.4 | ± 0.4 | 13.4 | ± 0.37 | 0.87 | 112 |
+0.7 -1.5 |
897 |
| 34 | 37.8 | 75.6 | 14.2 | ± 0.38 | 0.92 | 119 | 1077 | |||
| 36 | 39.8 | 79.6 | 15 | ± 0.40 | 0.98 | 126 | 1275 | |||
| 38 | 41.9 | ± 0.4 | 83.8 | ± 0.4 | 15.8 | ± 0.41 | 1.03 | 133 |
+0.7 -1.5 |
1503 |
| 40 | 44 | 88 | ± 0.5 | 16.6 | ± 0.43 | 1.08 | 140 | 1734 | ||
| 44 | 48.4 | 96.8 | 18.3 | ± 0.46 | 1.19 | 154 | 2314 | |||
| 48 | 52.8 | ± 0.4 | 105.6 | ± 0.5 | 20.0 | ± 0.5 | 1.3 | 168 |
+0.7 -1.5 |
3010 |
| 52 | 57.2 | ± 0.5 | 114.4 | ± 0.6 | 21.6 | ± 0.54 | 1.4 | 182 | 3813 | |
| 56 | 61.6 | 123.2 | 23.3 | ± 0.58 | 1.5 | 196 | 4772 | |||
|
60 |
66 |
± 0.5 |
132 | ± 0.6 | 25 | ± 0.63 | 1.6 | 210 |
+0.7 -1.5 |
5880 |
About TALURIT
-
- The company TALURIT was built-up on a patented solution for mechanical splicing of wire ropes. TALURIT have been the pioneering company in this special field, developing effective methods and equipment for mechanical splicing ever since.
The company is privately owned and was established in 1948. The parent company is based in Gothenburg, Sweden with subsidiaries near Singen in southern Germany and in Barnsley, United Kingdom. They have subsidiaries in Ningbo, China and in Singapore.
TALURIT sell their products throughout the world and have representation in most industrialized countries. Stock of standard products are strategically situated around the world to cut lead times and to improve efficiency.
-
Anfeng Lifting & Rigging is authorized non-exclusive distributor in China for TALURIT swagers, aluminum ferrules, copper ferrules, stainless steel ferrules, carbon steel ferrules and more.About Anfeng Lifting & RiggingBased in Shanghai Free Trade Zone, Shanghai Anfeng Lifting & Rigging Ltd. is an experienced technical and sales company specialized in supplying webbing slings, round slings, wire rope and slings, chains, rigging accessories and more.Anfeng supplies steel wire ropes, wire rope slings, lifting chains and accessories, webbing slings, round slings, fall protection harness, typhoon resistant series products, lashing, offshore mooring lines, chain hoists, lever hoists, electric hoists, shackles up to 1500t, and lifting points.We have earned a reputation globally as a provider of high quality products, supported by our trained staff and high standard of QA/QC procedure and inspections. Our technical staffs make sure the products meet all safety and manufacturing requirements. Upon request, Anfeng provides customers with DNV-GL, CCS, ABS and other third-party inspection certificates.
