EN 13411-3 Aluminium Ferrules For Wire Rope
Basic Properties
Place of Origin:
EU
Brand Name:
TALURIT®
Model Number:
TKON
Trading Properties
Minimum Order Quantity:
100 pcs
Price:
Call or Email for quote
Payment Terms:
T/T, L/C
Supply Ability:
10,000 pcs per month
Product Summary
TALUKON™ Ferrule Aluminum Ferrule, a conical ferrule made for sling application Product Description TALUKON™ is a conical ferrule made for sling application. It has an inspection hole to ensure the short end of the wire rope is correctly positioned after pressing. It also has a very tight fit compared to other conical ferrules on the market. The wire rope termination will not get caught during lifting and will simply slide of an obstacle. This will minimize the risk of
Product Details
Highlight:
EN 13411-3 Aluminium Ferrules For Wire Rope
,Aluminium Ferrules For Wire Rope
,EN 13411-3 aluminum cable ferrules
Product Name:
TALUKON™ Ferrule
Model Number:
TKON
Material:
Aluminum Alloy
Standard:
EN 13411-3
Packing:
Carton + Pallet, Wooden Box, Or Custom
Application:
For The Lifting Gear Industry
Product Description

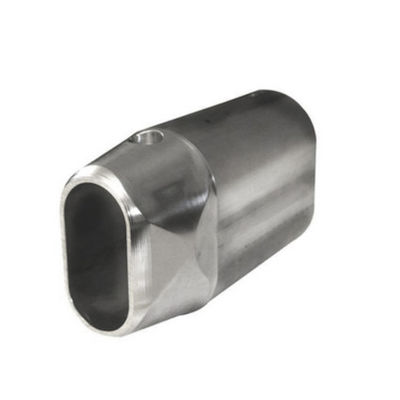

TALUKON™ Ferrule
Aluminum Ferrule, a conical ferrule made for sling application
Product Description
TALUKON™ is a conical ferrule made for sling application. It has an inspection hole to ensure the short end of the wire rope is correctly positioned after pressing. It also has a very tight fit compared to other conical ferrules on the market. The wire rope termination will not get caught during lifting and will simply slide of an obstacle. This will minimize the risk of accidents.
Art. No: TKON 18 – TKON 44
The aluminium TALUKON™ ferrule has been developed to have a very tight streamlined fit around the wire rope after pressing. TALUKON™ splicing system is validated and fulfills the requirements of EN 13411-3.
The aluminium ferrule is tapered in a milling machine to obtain the special design and inspection hole. TALUKON™ is available in sizes 18-44, art no: TKON. The ferrules are marked with a batch number and type number.
Applications
TALUKON™ is tailor made for the lifting gear industry. This is a ferrule with a very tight fit compared to other conical ferrules on the market. The wire rope termination will not get snagged during lifting and will simply slide off an obstacle. This will minimize the risk of accidents. The taper has been designed so it will not get caught when lifting but should slide off, minimizing the risk of accidents.
TALUKON™ is tailor made for the lifting gear industry. This is a ferrule with a very tight fit compared to other conical ferrules on the market. The wire rope termination will not get snagged during lifting and will simply slide off an obstacle. This will minimize the risk of accidents. The taper has been designed so it will not get caught when lifting but should slide off, minimizing the risk of accidents.
To be noted
The inspection hole has been designed so that the exact insertion length can be achieved and verified after the swaging operation. Check after swaging that the wire rope has not slipped while swaging. TALUKON™ is a patented solution: Application no. 09164696.8 Conical ferrule for sling application. Condition for usage of TALUKON™ ferrules is a signed license agreement with Talurit AB.
The inspection hole has been designed so that the exact insertion length can be achieved and verified after the swaging operation. Check after swaging that the wire rope has not slipped while swaging. TALUKON™ is a patented solution: Application no. 09164696.8 Conical ferrule for sling application. Condition for usage of TALUKON™ ferrules is a signed license agreement with Talurit AB.
About TALURIT
The company TALURIT was built-up on a patented solution for mechanical splicing of wire ropes. TALURIT have been the pioneering company in this special field, developing effective methods and equipment for mechanical splicing ever since.
The company is privately owned and was established in 1948. The parent company is based in Gothenburg, Sweden with subsidiaries near Singen in southern Germany and in Barnsley, United Kingdom. They have subsidiaries in Ningbo, China and in Singapore.
TALURIT sell their products throughout the world and have representation in most industrialized countries. Stock of standard products are strategically situated around the world to cut lead times and to improve efficiency.
The company is privately owned and was established in 1948. The parent company is based in Gothenburg, Sweden with subsidiaries near Singen in southern Germany and in Barnsley, United Kingdom. They have subsidiaries in Ningbo, China and in Singapore.
TALURIT sell their products throughout the world and have representation in most industrialized countries. Stock of standard products are strategically situated around the world to cut lead times and to improve efficiency.
Anfeng Lifting & Rigging is authorized non-exclusive distributor in China for TALURIT swagers, aluminum ferrules, copper ferrules, stainless steel ferrules, carbon steel ferrules and more.
