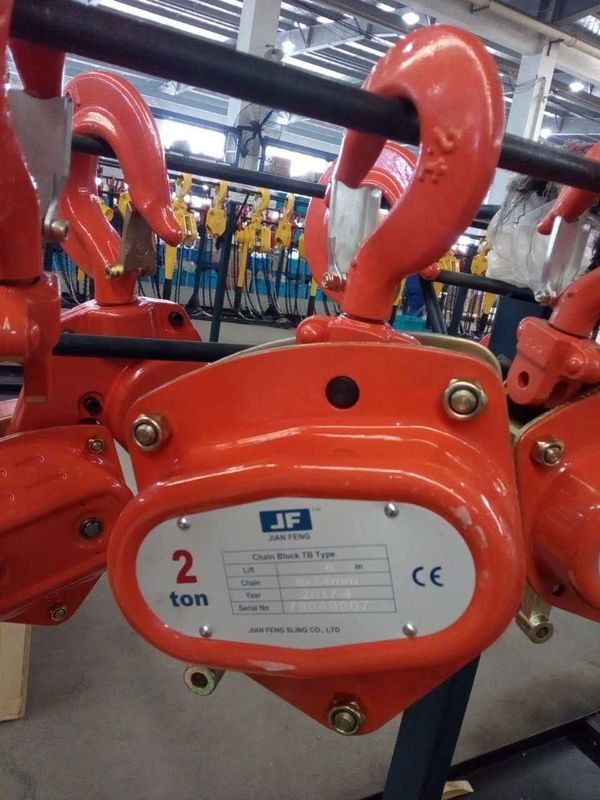

2000KG JCB High Strength Industrial Hand Chain Pulley

2000KG JCB High Strength Industrial Hand Chain Pulley
2000KG JCB High Strength Industrial Hand Chain Pulley 2000KG JCB High Strength Industrial Hand Chain Pulley

Large Image :  2000KG JCB High Strength Industrial Hand Chain Pulley

Product Details:
Place of Origin: China
Brand Name: Jian Feng / JF
Certification: CE, ISO 3077
Model Number: JCB-2.0
Payment & Shipping Terms:
Minimum Order Quantity: 500 pcs
Price: Call or Email for quote
Packaging Details: Carton + pallet, wooden box, or custom
Delivery Time: Within 45 days after order confirmation
Payment Terms: T/T, L/C
Supply Ability: 10,000 pcs per month

2000KG JCB High Strength Industrial Hand Chain Pulley

Description
Key Word: Chain Block, High Strength Industrial Manual Chain Hoist Material: Alloy Steel, Grade 80 Alloy Steel Chain, High Strength Hook
Colour: Orange Or Customized Standard: JB/T 7334-2016, ISO 3077
Capacity: 2,000 Kg Safety Factor: 4:1
Application: Industrial Lifting Custom Services: OEM, ODM
Packaging: Carton + Pallet, Wooden Box, Or Custom
Highlight:

2000KG Hand Chain Pulley

,

JCB Hand Chain Pulley

,

ISO 3077 chain pulley block 2 ton

2,000kg Chain Block type JCB
High Strength Industrial Manual Chain Hoist, safe and reliable


Our Chain Block type JCB is manufactured by Jian Feng Sling Co,.Ltd, in accordance with JB/T 7334-2016, ISO 3077 requirements.

Main features:
- Hardened steel rollers supporting the load sheaves run smoother and last longer than bearings
- Spur gear efficiency reduces operator effort. Double pawl and double guide rollers enhance performance, safety and reliability
- Load chain is alloy steel grade 80 according to ISO 3077
- Deformation indicators - two strategically placed marks allows for measurement to determine if the throat opening has changed thus indicating abuse or overload
- Equipped with wide throat top and bottom drop forged hooks that are designed to bend slowly to warn of overloads
- Every chain block is operationally tested to 150% of the rated capacity and issued an individual test certificate with unique serial number
- Safety factor: 4 times of the rated capacity

2000KG JCB High Strength Industrial Hand Chain Pulley 0

Chain Block type JCB Specification
2000KG JCB High Strength Industrial Hand Chain Pulley 1
Product No.

Capacity

(tons)

Proof load

(tons)

Standard Lift

(m)

No. of Falls

Diameter of Load Chain

(mm)

Lift

H

(mm)

Gape

C

(mm)

Pull to lift rated load

(N)

Net weight

(kg)

Extra weight per meter

(kg)

JCB-0.5 0.5 0.75 3 1 6 280 37 221 7.5 1.7
JCB-1.0 1.0 1.5 3 1 6 306 45 304 10.5 1.7
JCB-1.5 1.5 2.25 3 1 8 368 49 343 16 2.3
JCB-2.0 2.0 3.0 3 1 8 444 52 457 16.2 2.3
JCB-2.0 2.0 3.0 3 2 6 368 52 390 22 2.5
JCB-3.0 3.0 4.5 3 2 8 520 52 390 22 3.7
JCB-5.0 5.0 7.5 3 2 10 616 67 420 36 5.3
JCB-10.0 10.0 15 5 4 10 700 78 392 88 9.7
JCB-20.0 20.0 30 5 8 10 1000 64 392 205.5 19.4
JCB-30.0 30.0 45 5 12 10 1300 92 392 295 21.3
