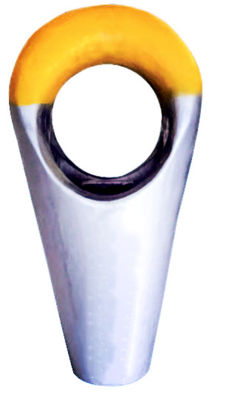

Galvanized Steel 2 Inch Short Bow Socket RR-S-550D

Galvanized Steel 2 Inch Short Bow Socket RR-S-550D
Galvanized Steel 2 Inch Short Bow Socket RR-S-550D Galvanized Steel 2 Inch Short Bow Socket RR-S-550D

Large Image :  Galvanized Steel 2 Inch Short Bow Socket RR-S-550D

Product Details:
Place of Origin: China
Brand Name: Anfeng / AF
Certification: CE, GS, ISO 9001
Model Number: SPA-01
Payment & Shipping Terms:
Minimum Order Quantity: 500 pcs
Price: Call or Email for quote
Packaging Details: Carton + pallet, wooden box, or custom
Delivery Time: Within 45 days after order confirmation
Payment Terms: T/T, L/C
Supply Ability: 10,000 pcs per month

Galvanized Steel 2 Inch Short Bow Socket RR-S-550D

Description
Brand Name: Anfeng / AF Key Word: Short Bow Socket For Wire Rope, Closed Spelter Socket, Wire Rope End Fittings, Long-term Durability
Standard: EN 13411-4:2002, RR-S-550D (type B) Material: Galvanized Steel
Finish: Zinc Plated And Yellow Coloured On Top Safety Factor: 5:1
Rope Strength: 1770 MPa Rope's Length: Customized
OEM Or ODM Services: Yes, Upon Request Place Of Origin: Shanghai Or Guangzhou, China
Packing: Carton + Pallet, Wooden Box, Or Custom
High Light:

2'' Short Bow Socket

,

50mm Short Bow Socket

,

ISO 9001 Bow Socket


2" Short Bow Socket for Wire Rope, type of Closed Spelter Socket, long-term durability

Wire Rope End Fittings

Description

Our Short Bow Socket is made from high tensile, quenched and tempered cast steel, with a different chemical composition and with extremely high mechanical properties, while galvanization ensures its long-term durability.

Short Bow Socket is a closed spelter socket. They are produced in accordance with RR-S-550D (type B) requirements and are available for wire rope with a diameter from 50mm to 92mm.

Specification
 Galvanized Steel 2 Inch Short Bow Socket RR-S-550D 0Galvanized Steel 2 Inch Short Bow Socket RR-S-550D 1
Code

Diameter

wire rope

Dimensions (mm)

Weight

(kg)

(in.) (mm) A B C D E F G
SPA-01 2-2-1/8 50-54 63.5 120.6 133.3 178.3 53.0 209.5 406.9 25.86
SPA-02 2-1/4-2-3/8 57-60 70.6 133.3 146.0 196.0 58.6 232.6 454.6 34.47
SPA-03 2-1/2-2-5/8 64-66 77.4 149.3 170.4 216.6 68.3 257.3 505.2 47.63
SPA-04 2-3/4-2-7/8 70-73 84.5 165.1 181.1 237.2 76.2 281.6 549.4 62.60
SPA-05 3-3-1/8 76-79 88.9 184.1 196.6 261.8 82.5 312.6 596.9 86.64
SPA-06 3-1/4-3-3/8 82-85 98.5 193.5 222.2 277.1 88.9 333.5 654.0 103.87
SPA-07 3-1/2-3-5/8 89-92 105.4 203.2 230.1 297.6 93.7 354.5 692.1 126.55

Note:
1. Reference standard: EN 13411-4: 2002, RR-S-550D (type B).
2. The above metioned wire ropes feature 6 x 19 + IWRC, 6 x 37 (a) + IWRC, 6 x 61 (a) + IWRC and 8 x 61 (a) + IWRC construction, with 1770 MPa in tension strength.
3. The wire rope structure, tensile strength and working load limited could be customized according to customer's request.
4. Safety Factor for the wire rope sling is 5:1.

Galvanized Steel 2 Inch Short Bow Socket RR-S-550D 2
