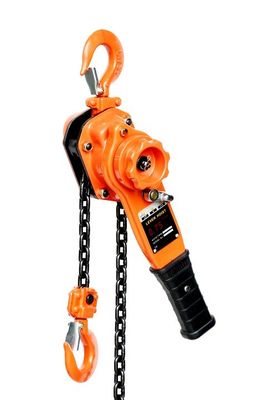

0.75 tonne Lever Hoist KIT-III
light weight & compact, for professional & industrial users
Lever Hoist type KIT-III is light weight and ultra compact, ideal for professional and industrial users. The hoist is equipped with Grade 100 load chain, which is 25% stronger than grade 80 load chain.
They are manufactured by VITALI-INTL Lifting Equipment Ltd, in accordance with EN13157 standards. The whole series contains 0.75 tonne, 1 tonne, 1.5 tonne, 3 tonne, 6 tonne and 9 tonne in load capacity. They are mainly exported to American and European markets.
Standard Features
1. Load Chain Grade 100, 25% stronger than grade 80
2. Light Weight (ultra compact)
3. Simple load chain guide system, allows operation in horizontal position
4. Reasonable Pulling force to rated capacity, more efficient to operate the hoist
5. High impact gear and brake cover
6. #31 Stop Knob can protect the hoist even the user wrongly put the loading on the end ring
7. ZINC FLAKE COATING finish for important parts
8. Superior rubber grip with Fastening Screw #27A
9. Simple design makes routine inspection or maintenance fast and easy
10. Each lever hoist is tested at 1.5 times of the rated capacity
11. Complied with EN13157
VITALI-INTL Lever Hoist KIT-III Specification
| Capacity |
(tonnes) |
0.75 |
1 |
1.5 |
3 |
6 |
9 |
| Product No. |
|
KIT3075 |
KIT3100 |
KIT3150 |
KIT3300 |
KIT3600 |
KIT3900 |
| No. of Falls |
|
1 |
1 |
1 |
1 |
2 |
3 |
| Load Chain Grade 100 |
(mm) |
5.6 x 17 |
5.6 x 17 |
7.1 x 21 |
10 x 30 |
10 x 30 |
10 x 30 |
| Pull to Rated Load1 |
(N) |
258 |
346 |
342 |
350 |
375 |
388 |
| Pull to Rated Load2 |
(N) |
223 |
319 |
316 |
319 |
332 |
388 |
| Proof Load |
(tonnes) |
1.13 |
1.5 |
2.25 |
4.5 |
9 |
13.5 |
| Standard Lift |
(m) |
1.5 |
1.5 |
1.5 |
1.5 |
1.5 |
1.5 |
| Net Weight |
(kg) |
6.2 |
6.4 |
9.6 |
15.5 |
27 |
38.3 |
| Gross Weight |
(kg) |
6.59 |
6.79 |
10.07 |
16.11 |
27.61 |
44.8 |
| Extra Wt. per m |
(kg) |
0.7 |
0.7 |
1.1 |
1.74 |
3.48 |
5.22 |
| Dimensions |
a |
(mm) |
148 |
148 |
165.5 |
194.5 |
194.5 |
194.5 |
| b |
(mm) |
88 |
88 |
107 |
113 |
113 |
113 |
| C |
(mm) |
37.5 |
45 |
47 |
62.5 |
78 |
- |
| d |
(mm) |
278 |
278 |
355 |
433 |
433 |
433 |
| g |
(mm) |
28 |
33 |
33.5 |
43.5 |
51 |
64 |
| h |
(mm) |
280 |
290 |
350 |
420 |
570 |
570 |
1: without Caged Roller Bearings on Load Sprocket (Standard Feature)
2: with Caged Roller Bearings on Load Sprocket (Optional Feature)
About VITALI-INTL Lifting Equipment Ltd
VITALI-INTL Lifting Equipment Ltd, is one of the most advanced manual hoist factories in Asia. The company has registered the trademark with "VITALI-INTL" in Mainland China, Hong Kong China and some overseas countries.
The company's philosophy of management and quality control are based on European and American standards.Their high quality manual hoists are mainly exported to American and European markets.
The heat treatment and load chain production are the most critical production processes of the company. Additionally, they are equipped with advance scientific testing instruments, metallographic microscope, measuring projector, salt spray tester, endurance test machine and destruction test machine up to 100 tonnes.
Anfeng Lifting & Rigging is authorized distributor for all the products made by VITALI-INTL Lifting Equipment.
